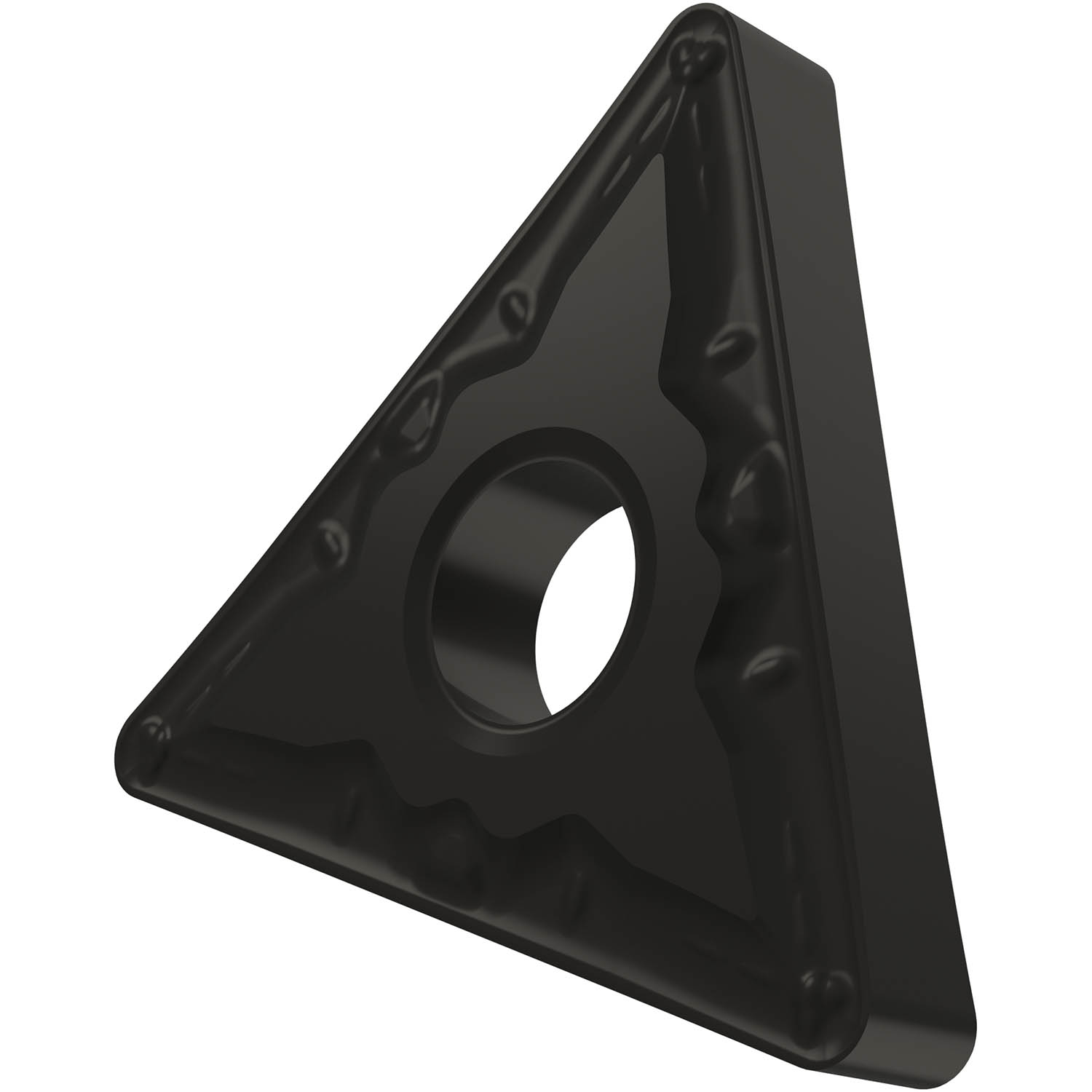

Pramet TNMG 331-FM:T7325 | 0.375" Circle Diameter x 0.187" Thickness Turning Insert

$10.85 $7.01
(You save $3.84)
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
21/32"
Length (Decimal Inch):
0.6500"
Length (mm):
16.5mm
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.4mm
interval quantity:
10
SKU:
23149327
UPC:
Weight:
0.01 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

Double-sided negative turning insert, triangular with inscribed circle diameter of 9.525 mm, 4.76 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10-M25, for fine to medium machining of stainless-steels.

Product Specifications
EDP Number7156376
Max Depth of Cut (mm)3 mm
Max Depth of cut (Inch)0.118"
Coating Property1
Maximum Axial Groove Outside Diameter (mm)
Fixing Hole Diameter (mm)3.81 mm
Fixing Hole Diameter (Inch)0.15"
Cutting Edge Length (mm)16.5 mm
Cutting Edge Length (Inch)0.65"
Inscribed Circle Diameter (mm)9.525 mm
Inscribed Circle Diameter (Inch)0.375"
Insert Thickness (mm)4.76 mm
Insert Thickness (Inch)0.187"
Corner Radius (mm)0.4 mm
Corner Radius (Inch)0.016"
Coating ProcessMT-CVD
CoatingT7325
Surface ColorBlack
Min Depth of Cut (mm)0.5 mm
Min Depth of Cut (Inch)0.02"
Chipbreaker Manufacturer's DesignationFM
