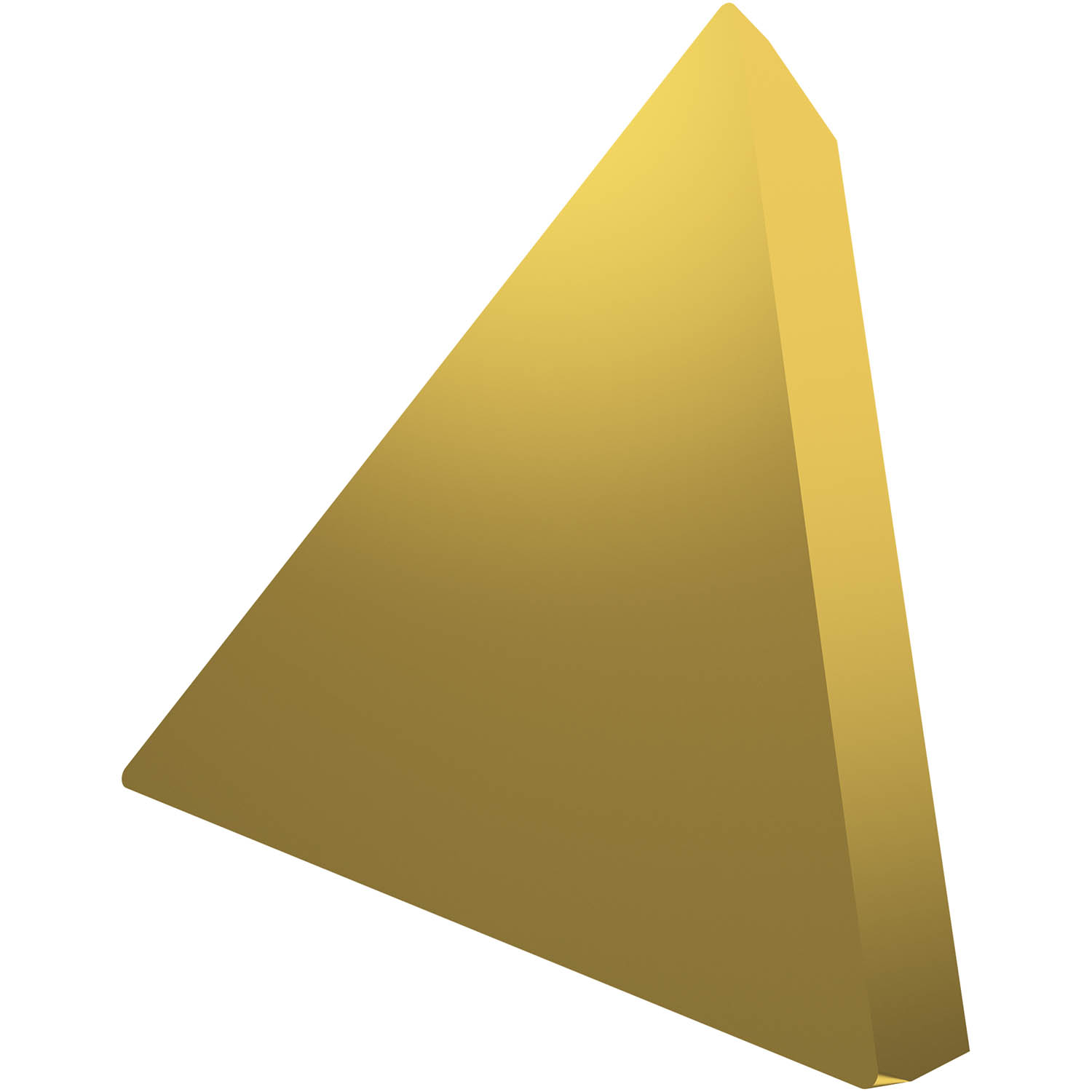

Double-sided positive turning insert, triangular with 11° clearance, inscribed circle diameter of 15.875 mm, 6.35 mm thick, 1.6 mm nose radius, indexing accuracy according to ISO-tolerance class-U with rounded cutting edges with facet, in grade 6640, a MT-CVD coated WC-Co carbide, for medium to fine machining.
Product Specifications
| EDP Number | 6751573 |
| Max Depth of Cut (mm) | 7.8 mm |
| Max Depth of cut (Inch) | 0.307" |
| Coating Property | 1 |
| Cutting Edge Length (mm) | 27.5 mm |
| Cutting Edge Length (Inch) | 1.083" |
| Inscribed Circle Diameter (mm) | 15.875 mm |
| Inscribed Circle Diameter (Inch) | 0.625" |
| Insert Thickness (mm) | 6.35 mm |
| Insert Thickness (Inch) | 0.25" |
| Corner Radius (mm) | 1.6 mm |
| Corner Radius (Inch) | 0.063" |
| Coating Process | MT-CVD |
| Coating | 6640 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 1.6 mm |
| Min Depth of Cut (Inch) | 0.063" |
| Chipbreaker Manufacturer's Designation | No chipbreaker |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
1-5/64"
Length (Decimal Inch):
1.0830"
Length (mm):
27.5mm
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.875mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0630"
Corner Radius (mm):
1.6mm
interval quantity:
10
