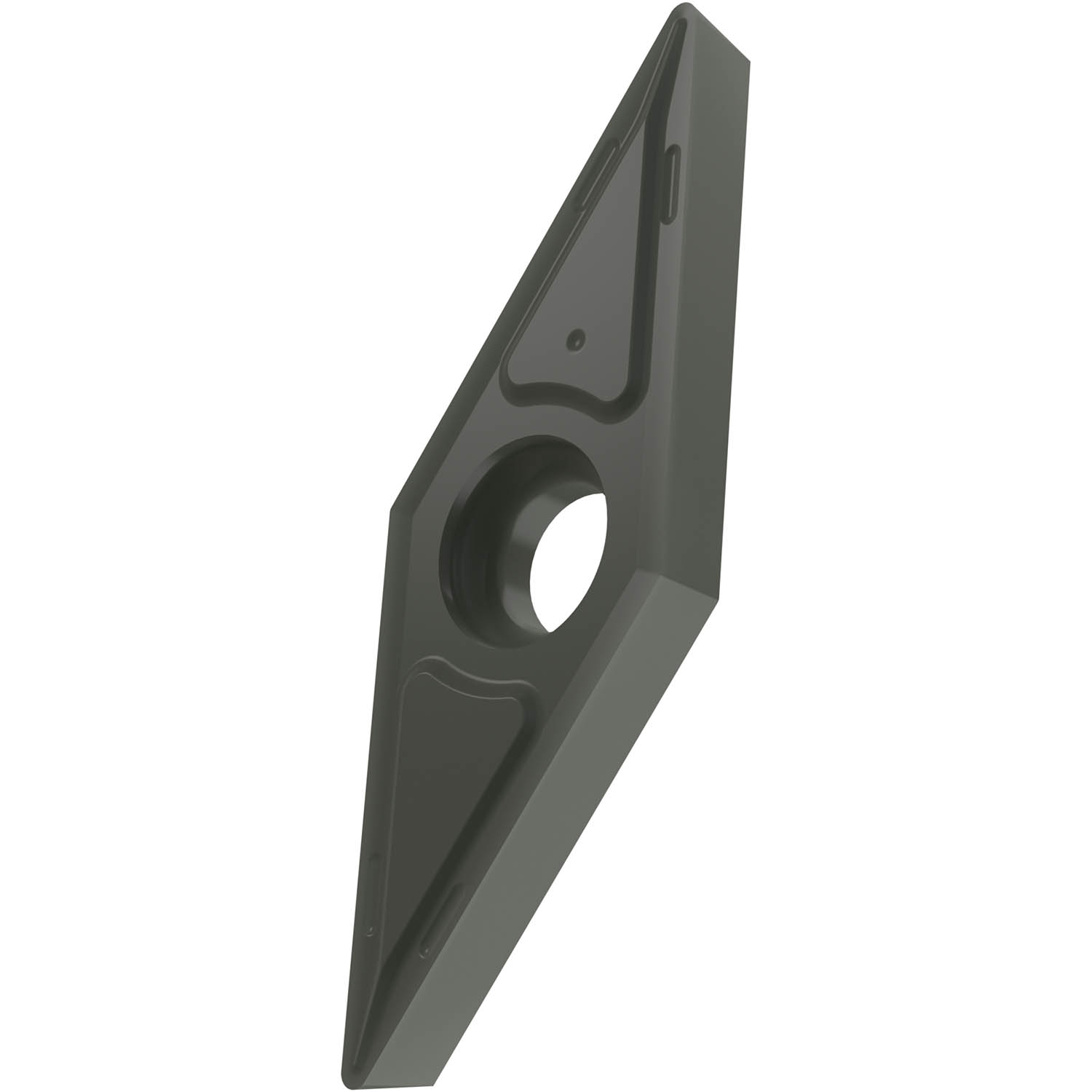

Pramet VCGT 2.520.5-FF2:TT010 | 0.313" Circle Diameter x 3.18 mm Thickness TT010 Grade Turning Insert

$14.35 $9.27
(You save $5.08)
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
35/64"
Length (Decimal Inch):
0.5430"
Length (mm):
13.8mm
Inscribed Circle (Inch):
5/16"
Inscribed Circle (Decimal Inch):
0.3130"
Inscribed Circle (mm):
7.94mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.18mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.2mm
interval quantity:
10
SKU:
23149731
UPC:
Weight:
0.16 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 7.94 mm, 3.18 mm thick, 0.2 mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker FF2 with rounded cutting edges, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine to medium machining of steels.

Product Specifications
EDP Number6756303
Max Depth of Cut (mm)1.5 mm
Max Depth of cut (Inch)0.059"
Fixing Hole Diameter (mm)3.4 mm
Fixing Hole Diameter (Inch)0.134"
Cutting Edge Length (mm)13.8 mm
Cutting Edge Length (Inch)0.543"
Inscribed Circle Diameter (mm)7.94 mm
Inscribed Circle Diameter (Inch)0.313"
Insert Thickness (mm)3.18 mm
Insert Thickness (Inch)0.125"
Corner Radius (mm)0.2 mm
Corner Radius (Inch)0.008"
CoatingTT010
Surface ColorGrey
Min Depth of Cut (mm)0.2 mm
Min Depth of Cut (Inch)0.008"
Chipbreaker Manufacturer's DesignationFF2
