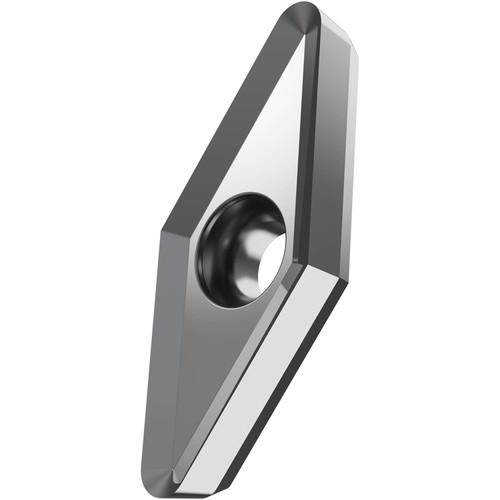

Single-sided milling insert VCGT 2205 with chip-breakers, 35° rhomboid for a maximum depth of cut of 18.0 mm, with 2.0 mm corner radius, an indexing accuracy according to ISO-tolerance class-G and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with end mills SVC22C.
Product Specifications
| EDP Number | 6751855 |
| Maximum Depth of Cut (mm) | 18 mm |
| Max Depth of Cut (Inch) | 0.709" |
| Fixing Hole Diameter (mm) | 5.2 mm |
| Fixing Hole Diameter (Inch) | 0.205" |
| Cutting Edge Length (mm) | 22 mm |
| Cutting Edge Length (Inch) | 0.866" |
| Inscribed Circle Diameter (mm) | 12.7 mm |
| Inscribed Circle Diameter (Inch) | 0.5" |
| Insert Thickness (mm) | 5.5 mm |
| Insert Thickness (Inch) | 0.217" |
| Corner Radius (mm) | 2 mm |
| Corner Radius (Inch) | 0.079" |
| Coating | HF7 |
| Surface Color | Silver |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
