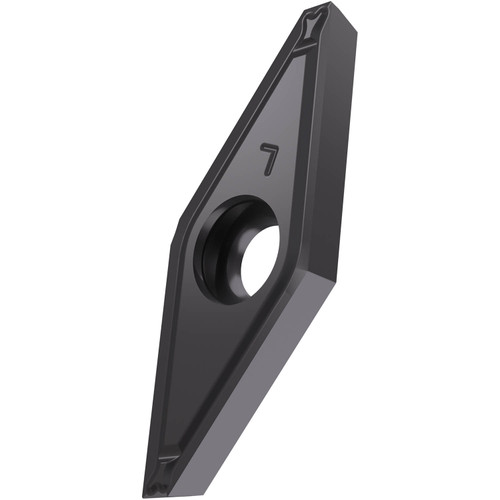

Special design positive turning insert, 35ยฐ rhomboid with 7ยฐ clearance, inscribed circle diameter of 7.94 mm, 3.18 mm thick, nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker FF2 with sharp cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide, for fine to medium machining with a right handed turning tool.
Product Specifications
| EDP Number | 7156796 |
| Max Depth of Cut (mm) | 1.5 mm |
| Max Depth of cut (Inch) | 0.059" |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (mm) | 3.4 mm |
| Fixing Hole Diameter (Inch) | 0.134" |
| Cutting Edge Length (mm) | 13.8 mm |
| Cutting Edge Length (Inch) | 0.543" |
| Inscribed Circle Diameter (mm) | 7.94 mm |
| Inscribed Circle Diameter (Inch) | 0.313" |
| Insert Thickness (mm) | 3.18 mm |
| Insert Thickness (Inch) | 0.125" |
| Coating Process | PVD |
| Coating | T6310 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.2 mm |
| Min Depth of Cut (Inch) | 0.008" |
| Chipbreaker Manufacturer's Designation | FF2 |
