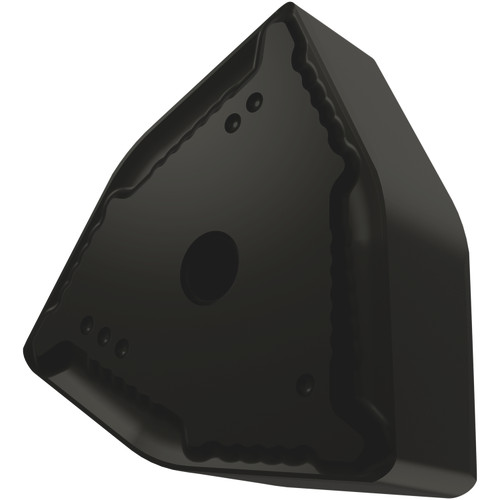

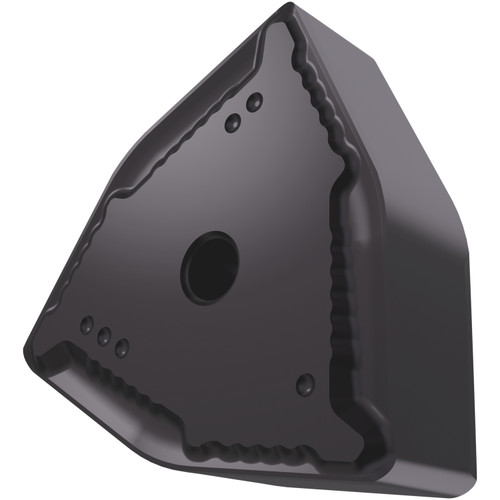

Double-sided negative barpeeling insert, 80 Degree trigon with inscribed circle diameter of 31.75 mm, 13 mm thick for 8 mm depth of cut, indexing accuracy according to ISO-tolerance class-M, chip-breaker PM with S01 cutting edge preperation, in grade 6630, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for high strength steels.
Product Specifications
| EDP Number | 6752814 |
| Min Cutting Depth (mm) | 1 mm |
| Max Depth of Cut (mm) | 8 mm |
| Max Depth of cut (Inch) | 0.315" |
| Coating Property | 1 |
| Insert Included Angle | 85 |
| Cutting Edge Length (mm) | 20 mm |
| Cutting Edge Length (Inch) | 0.787" |
| Inscribed Circle Diameter (mm) | 31.75 mm |
| Inscribed Circle Diameter (Inch) | 1.25" |
| Insert Thickness (mm) | 13 mm |
| Insert Thickness (Inch) | 0.512" |
| Major Cutting Edge Angle | 25 |
| Wiper Edge Length (mm) | 15 mm |
| Wiper edge Length (Inch) | 0.591" |
| Coating Process | MT-CVD |
| Coating | 6630 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
| Chipbreaker Manufacturer's Designation | PM-S01 |
| Country of origin | Czech Republic |
