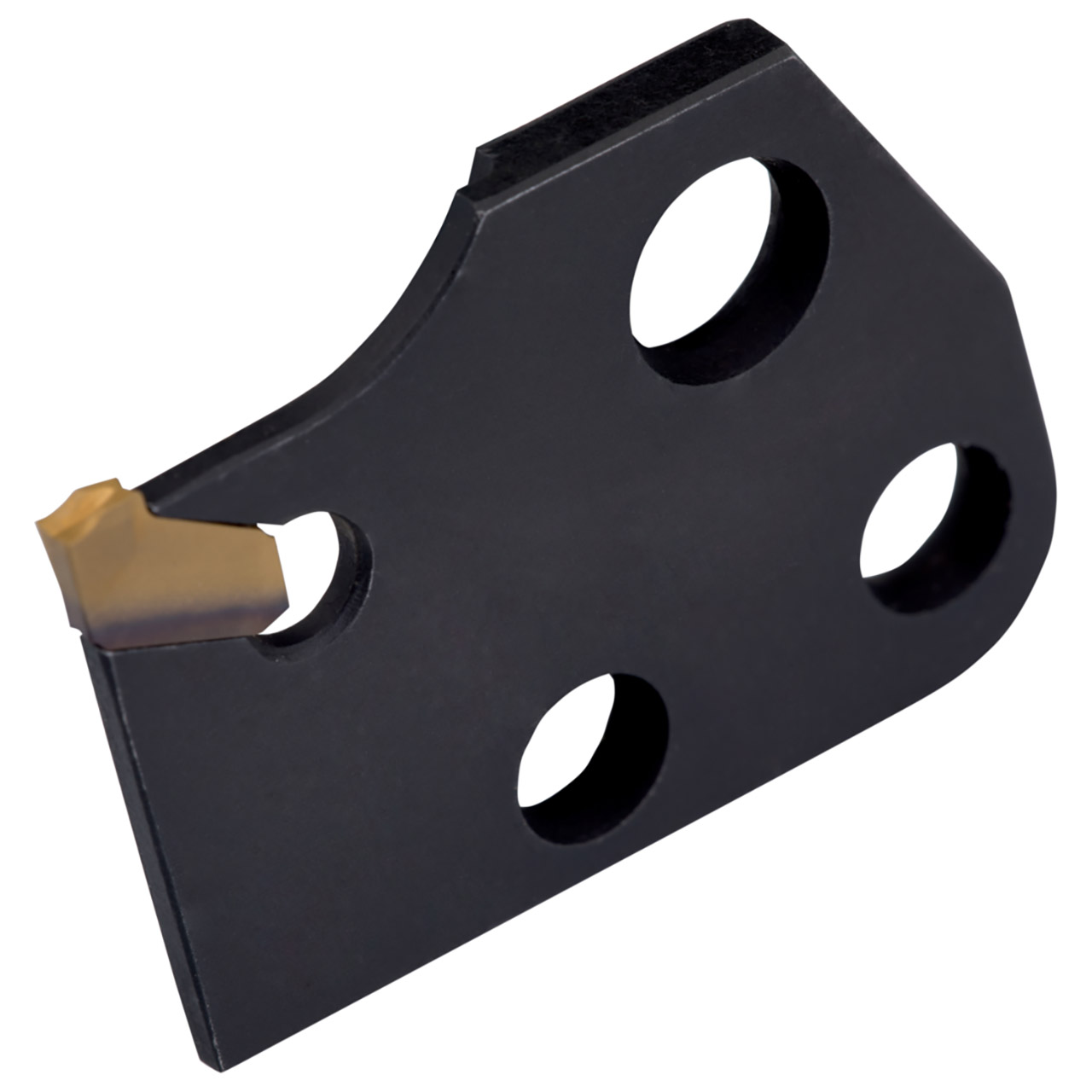

Spring clamp parting and grooving tool blade for holding a single ended insert with 3 mm cutting width (designation LFMX 3.1-. ), tool style assembly with MS-EN.. (KMP)(S), right or left hand side, insert parallel to the shank for a maximum grooving depth of 25 mm, for shallow and deep radial grooving, parting-off and tube parting-off.
Product Specifications
| EDP Number | 6756322 |
| Functional Height (mm) | 24 mm |
| Functional Height (Inch) | 0.945" |
| Cutting Width (Inch) | 0.122" |
| Cutting Width (mm) | 3.1 mm |
| Max Cutting Depth (mm) | 25 mm |
| Max Cutting Depth (Inch) | 0.984" |
| Shank Height (mm) | 29 mm |
| Shank Height (Inch) | 1.142" |
| Functional Length (mm) | 50 mm |
| Functional Length (Inch) | 1.969" |
| Clamping Type Code | System X |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
Length (Inch):
7/64";Length (Decimal Inch)=0.1060""
Length (mm):
2.7mm
Inscribed Circle (Inch):
5/32";Inscribed Circle (Decimal Inch)=0.1560""
Inscribed Circle (mm):
3.97mm
Thickness (Inch):
1/16";Thickness (Decimal Inch)=0.0630""
Thickness (mm):
1.59mm
Corner Radius (Inch):
1/64";Corner Radius (Decimal Inch)=0.0160""
Corner Radius (mm):
0.4mm
Ships:
From Partner Facility
