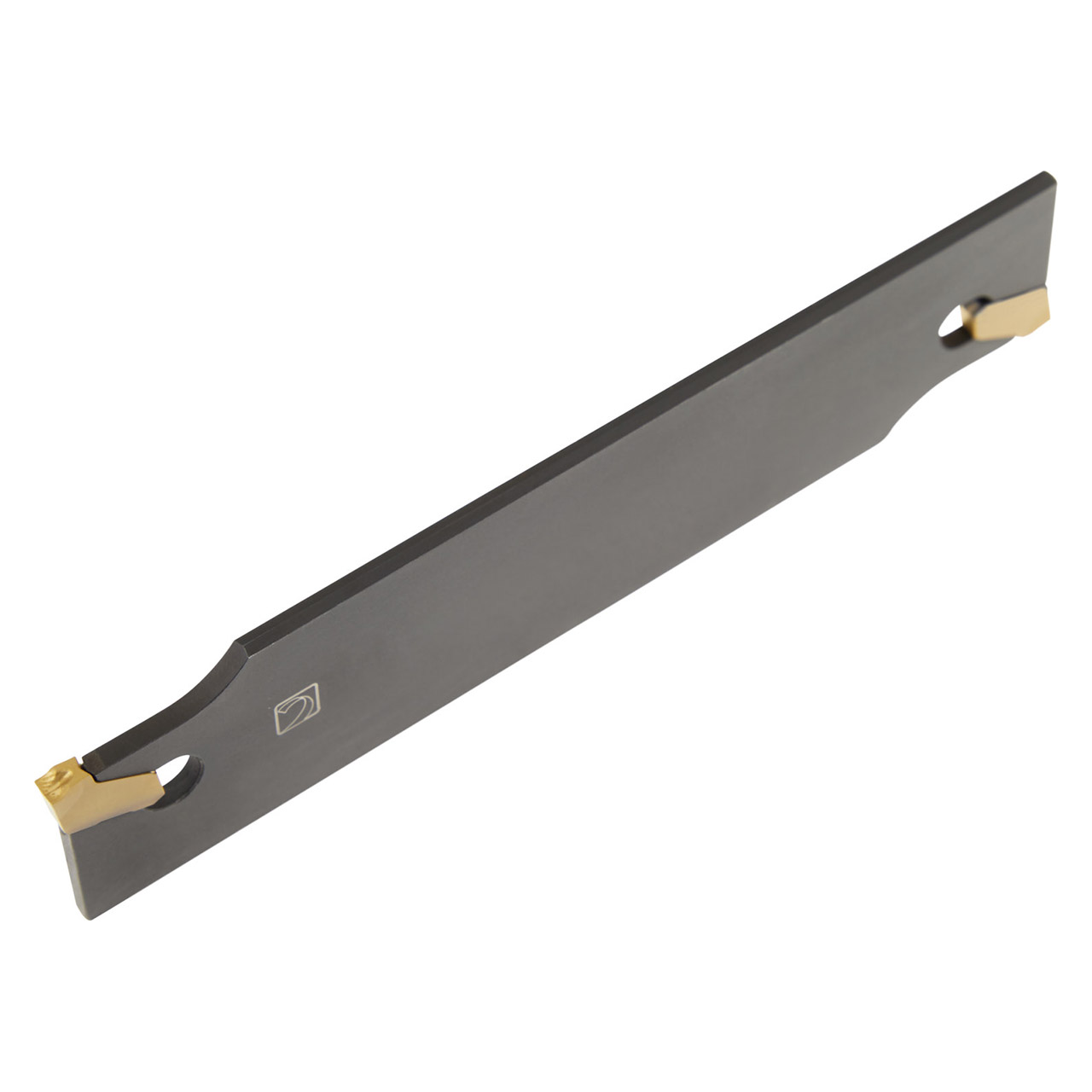

Spring clamp parting and grooving tool blade for holding a single ended insert with 3 mm cutting width (designation LFMX 3.1-. ), tool style assembly with 26-DU.. for a maximum grooving depth of 37.5 mm, tool blade height 26 mm and length 110 mm for deep radial grooving, parting-off and tube parting-off.
Product Specifications
| EDP Number | 6756324 |
| Functional Height (mm) | 21.4 mm |
| Functional Height (Inch) | 0.843" |
| Cutting Width (Inch) | 0.122" |
| Cutting Width (mm) | 3.1 mm |
| Max Cutting Depth (mm) | 37.5 mm |
| Max Cutting Depth (Inch) | 1.476" |
| Shank Height (mm) | 26 mm |
| Shank Height (Inch) | 1.024" |
| Functional Length (mm) | 110 mm |
| Functional Length (Inch) | 4.331" |
| Clamping Type Code | System X |
| Country of origin | Czech Republic |
