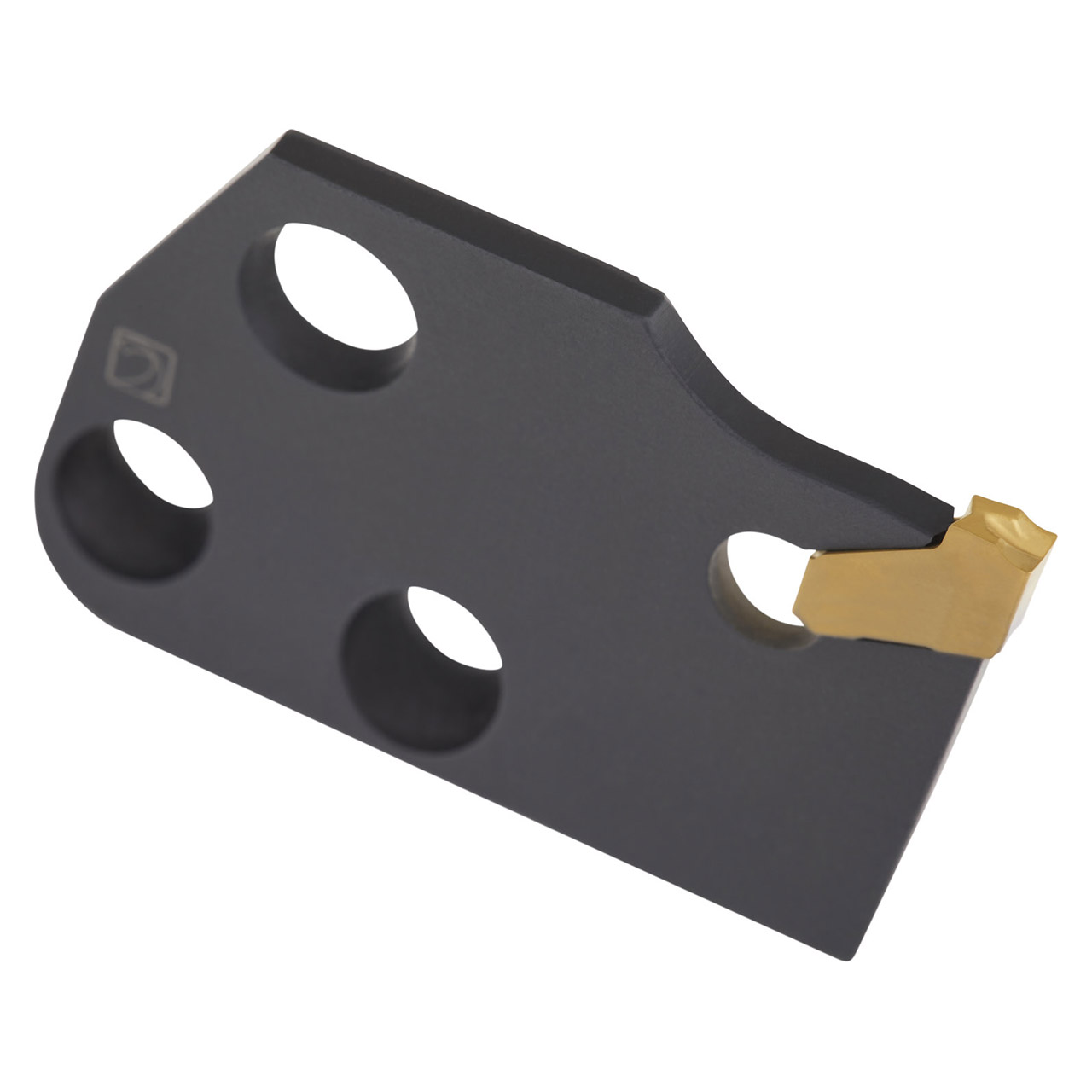

Spring clamp parting and grooving tool blade for holding a single ended insert with 3 mm cutting width (designation LFMX 3.1-. ), tool style assembly with MS-EN.. (KMP)(S), left handed with insert parallel to the shank for a maximum grooving depth of 20 mm, with a counter clockwise curved blade for face grooving a diameter range of 100 and 155 mm.
Product Specifications
| EDP Number | 6756346 |
| Functional Height (mm) | 24 mm |
| Cutting Width (mm) | 3.1 mm |
| Max Cutting Depth (mm) | 20 mm |
| Maximum Axial Groove Outside Diameter (mm) | 155 mm |
| Shank Height (mm) | 29 mm |
| Functional Length (mm) | 46 mm |
| Clamping Type Code | System X |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
