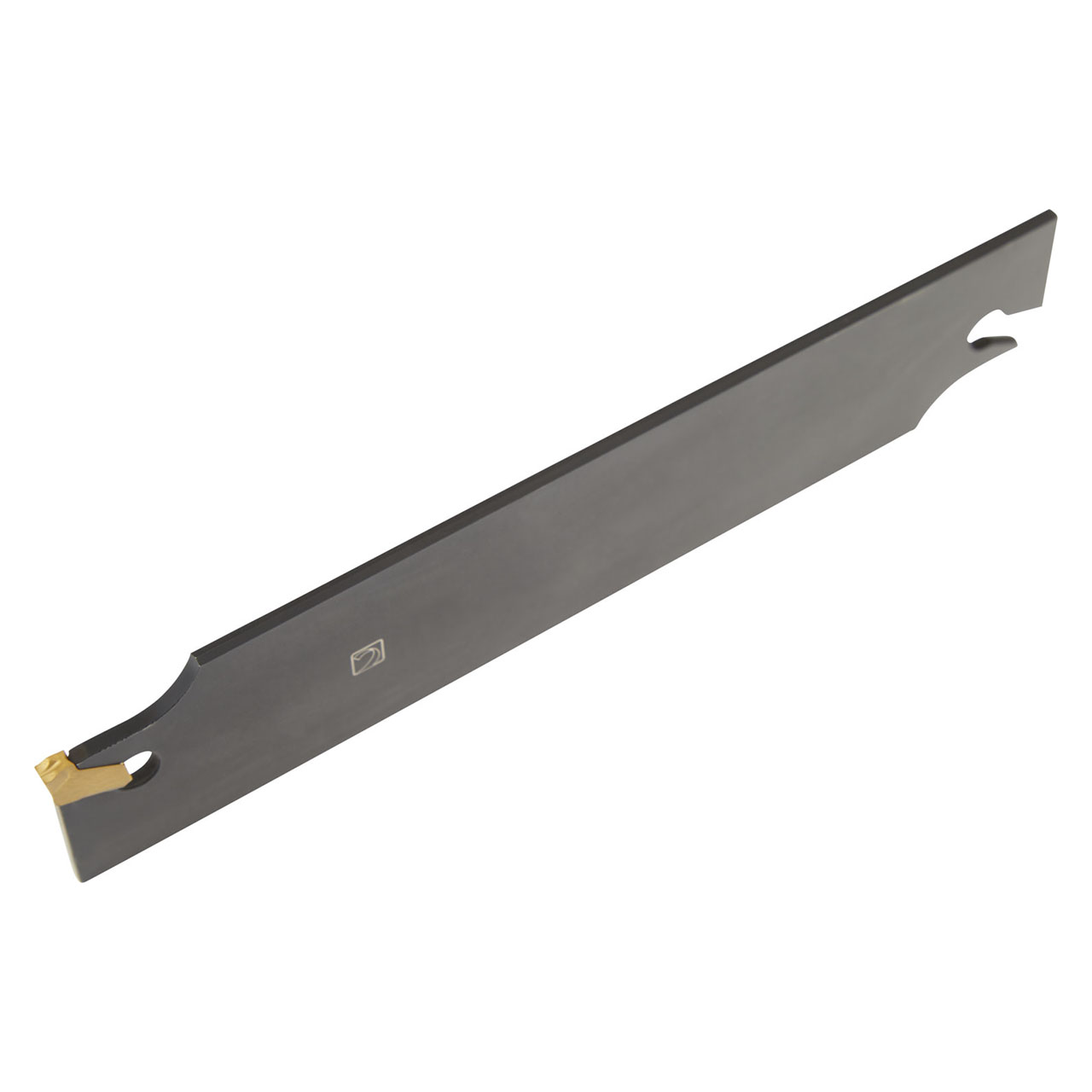

Spring clamp parting and grooving tool blade for holding a single ended insert with 1.5-1.6 mm cutting width (designation LFMX 1.5-. / LFMX 1.6-. ), tool style assembly with 32-DU.. for a maximum grooving depth of 15 mm, tool blade height 32 mm and length 150 mm for deep radial grooving, parting-off and tube parting-off.
Product Specifications
| EDP Number | 6757902 |
| Functional Height (mm) | 25 mm |
| Functional Height (Inch) | 0.984" |
| Cutting Width (Inch) | 0.059" |
| Cutting Width (mm) | 1.5 mm |
| Max Cutting Depth (mm) | 15 mm |
| Max Cutting Depth (Inch) | 0.591" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 32 mm |
| Shank Height (Inch) | 1.26" |
| Functional Length (mm) | 150 mm |
| Functional Length (Inch) | 5.906" |
| Clamping Type Code | System X |
| Country of origin | Czech Republic |
