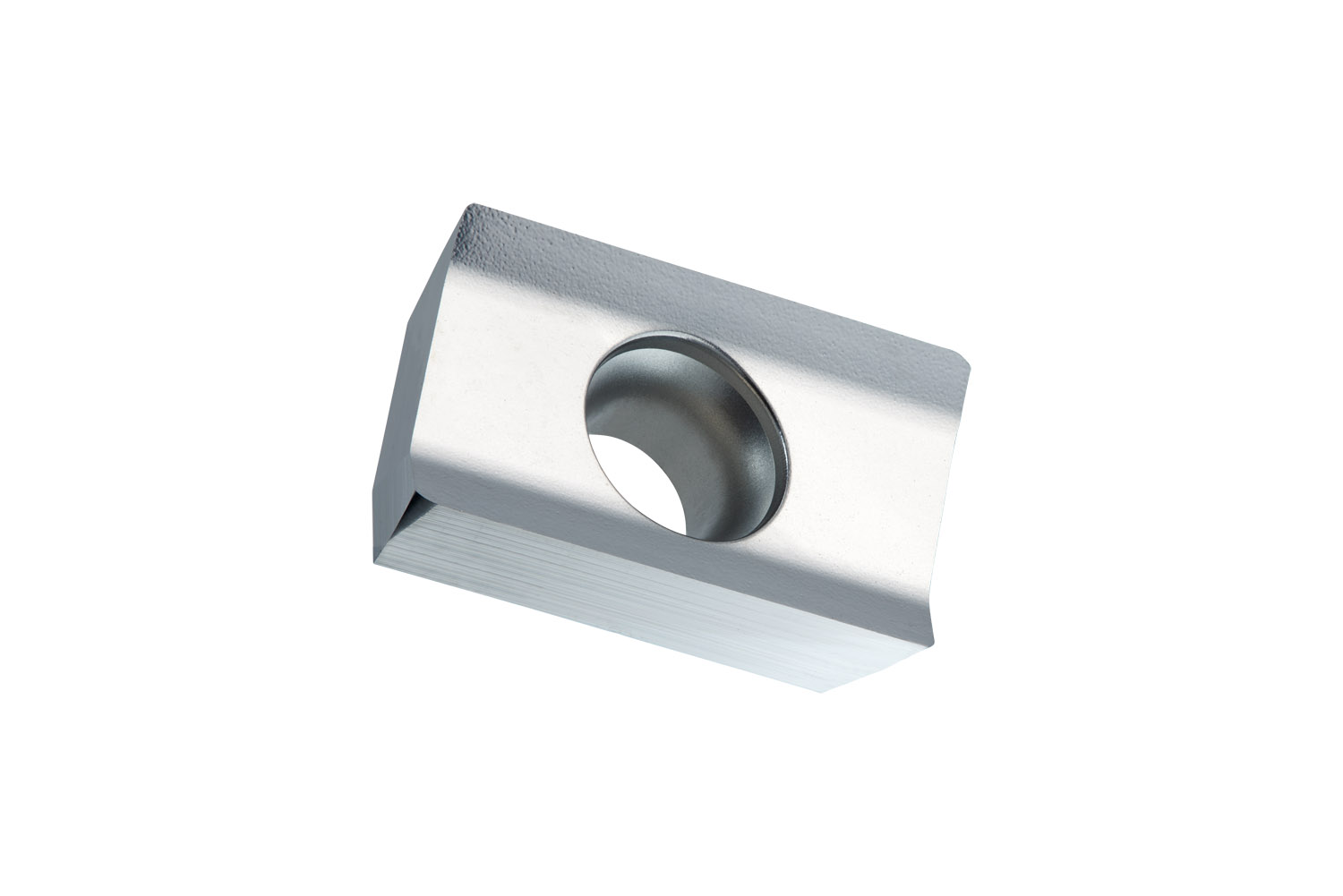

Single-sided milling insert XPHT 1604 with chip-breakers, special shape for a maximum depth of cut of 15.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-H and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal.
Product Specifications
| EDP Number | 6752075 |
| Maximum Depth of Cut (mm) | 15 mm |
| Max Depth of Cut (Inch) | 0.591" |
| Fixing Hole Diameter (mm) | 4.4 mm |
| Fixing Hole Diameter (Inch) | 0.173" |
| Cutting Edge Length (mm) | 15.88 mm |
| Cutting Edge Length (Inch) | 0.625" |
| Insert Width (mm) | 9.525 mm |
| Insert Width (Inch) | 0.375" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating | HF7 |
| Surface Color | Silver |
| Min Depth of Cut (mm) | 0.8 mm |
| Min Depth of Cut (Inch) | 0.031" |
