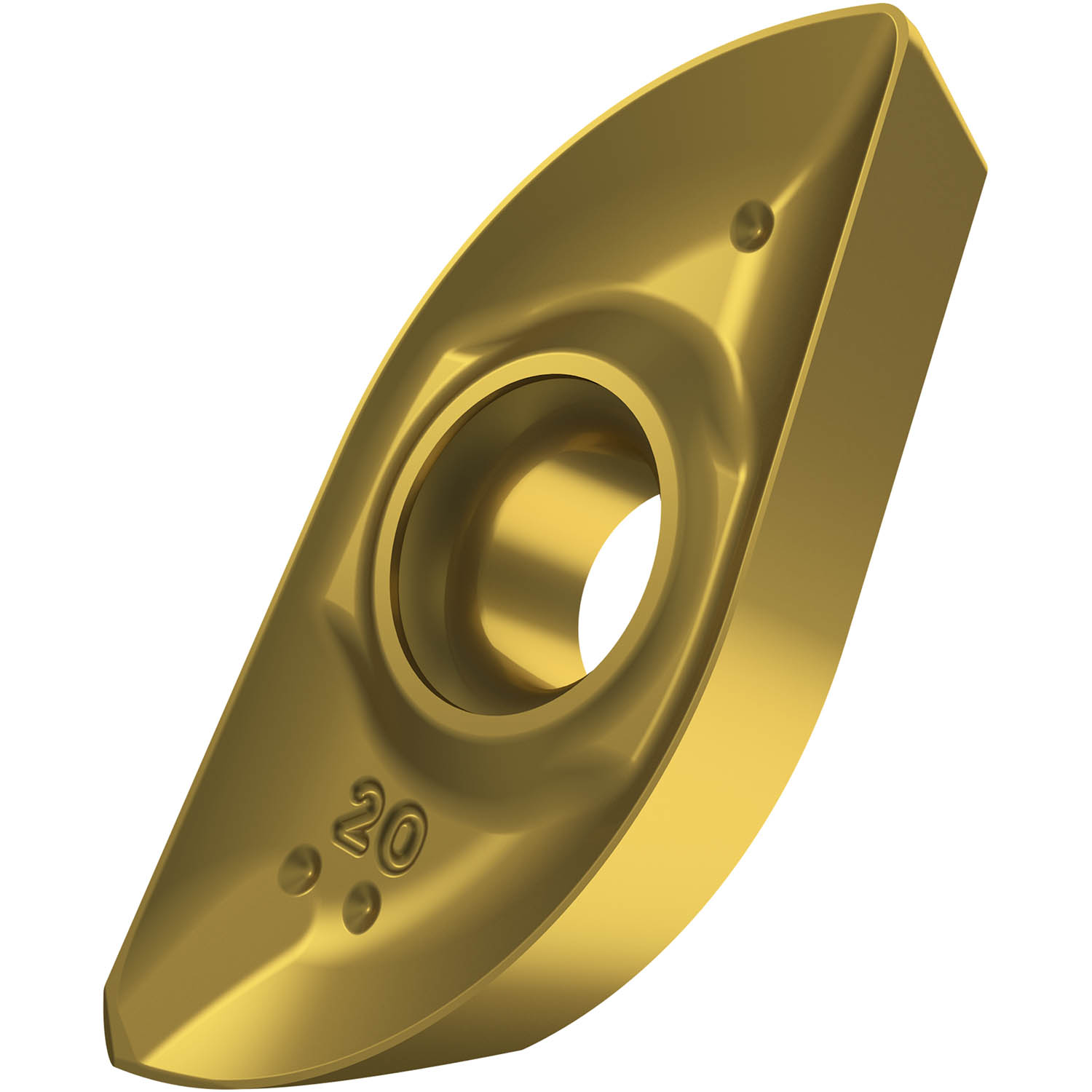

Indexable ball nose segment copy milling insert for a diameter of 12 mm for a maximum depth of cut of 10.7 mm, M geometry and M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with copy end mills L2-SZP.
Product Specifications
| EDP Number | 7451129 |
| Maximum Depth of Cut (mm) | 10.7 mm |
| Max Depth of Cut (Inch) | 0.421" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 2.9 mm |
| Fixing Hole Diameter (Inch) | 0.114" |
| Insert Width (mm) | 12 mm |
| Insert Width (Inch) | 0.472" |
| Insert Thickness (mm) | 2.38 mm |
| Insert Thickness (Inch) | 0.094" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
10
