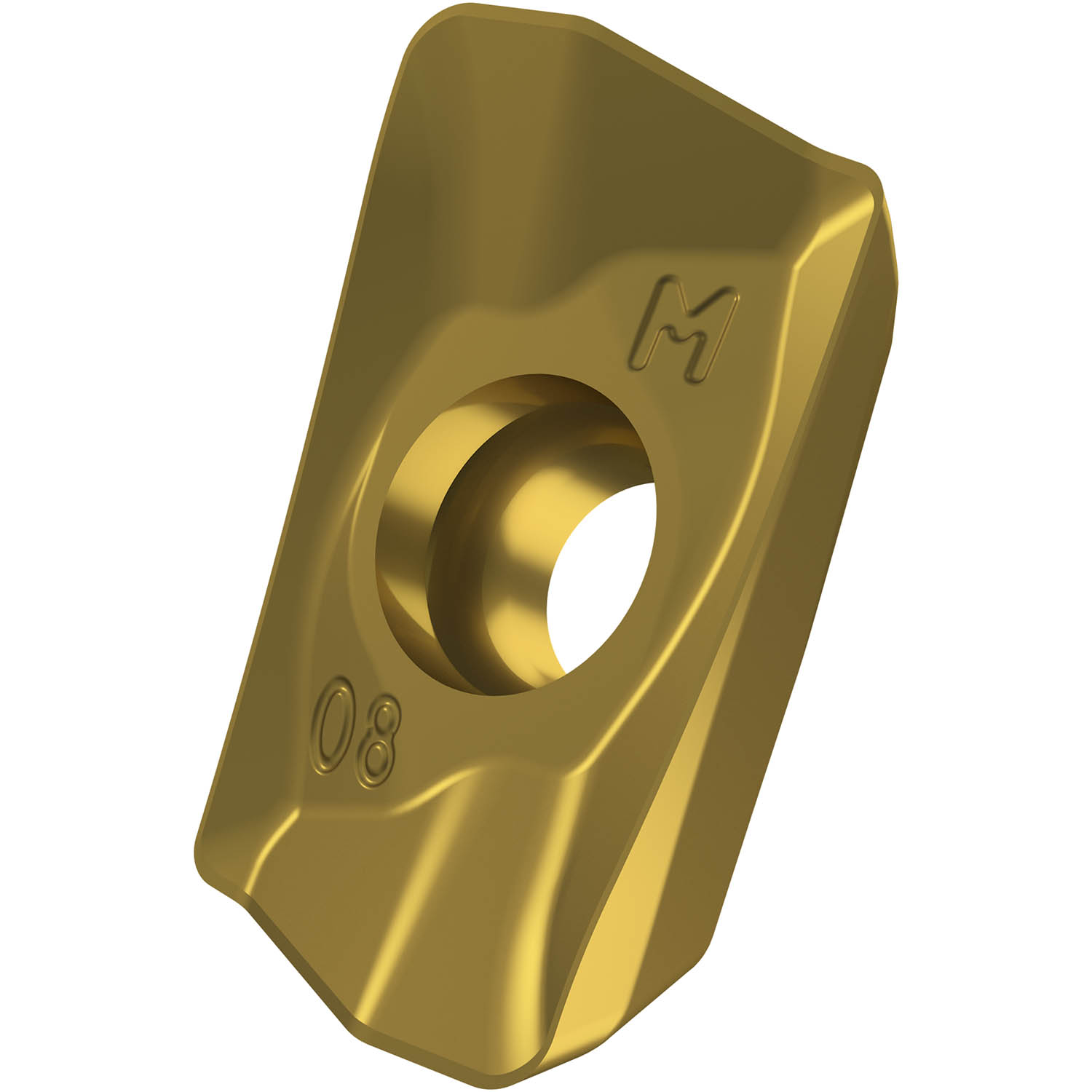

Pramet ADMX 11T316SR-M:M8330 | 3.97 mm Thickness M8330 Grade Milling Insert

$9.71
Ships:
From Partner Facility
Ships:
From Partner Facility
interval quantity:
10
SKU:
23151107
UPC:
3603603385252
Weight:
0.12 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Single-sided milling insert ADMX 11T3, 85° parallelogram for a maximum depth of cut of 9.0 mm, with 1.6 mm corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with shoulder mills SAD11E or shoulder mills with extended flute J(T)-SAD11E.

Product Specifications
EDP Number7447811
Maximum Depth of Cut (mm)9 mm
Max Depth of Cut (Inch)0.354"
Coating Property1
Fixing Hole Diameter (mm)2.9 mm
Fixing Hole Diameter (Inch)0.114"
Cutting Edge Length (mm)11 mm
Cutting Edge Length (Inch)0.433"
Insert Width (mm)6.53 mm
Insert Width (Inch)0.257"
Insert Thickness (mm)3.97 mm
Insert Thickness (Inch)0.156"
Corner Radius (mm)1.6 mm
Corner Radius (Inch)0.063"
Coating ProcessPVD
CoatingM8330
Surface ColorGold
Min Depth of Cut (mm)0.2 mm
Min Depth of Cut (Inch)0.008"
