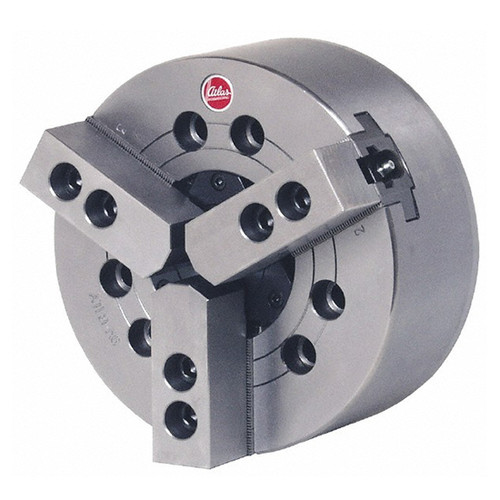

Pratt Burnerd America ATL6-A5 | 6" 3 Jaw Power Chuck A-5 Mount

$2,095.00
Ships:
From Partner Facility
Brand:
Pratt Burnerd America
Chuck Diameter (Inch):
6"
Number of Jaws:
3
Mount:
A-5
Through-Hole Diameter (Decimal Inch):
1.7700"
Through-Hole Diameter (mm):
45mm
Chuck Actuation Style:
Drawbar
Operation Type:
Hydraulic
Ships:
From Partner Facility
IsDiscontinued:
SKU:
50000095
UPC:
Weight:
33.00 LBS
Shipping:
Free Shipping

Product Specifications
Weight 30 lbs
Brand Pratt Burnerd America
Chuck Size 6"
Thru-Hole Diameter (mm) 45mm
Thru-Hole Diameter (Inch) 1.77"
Mount A-5
Maximum Gripping Capacity (Inch) 6.65"
Minimum Gripping Capacity (Inch) 0.590"
Maximum Gripping Force (lb/f) 12,813 lb/f
Maximum Draw Bar Pull (lb/f) 4,945 lb/f
Jaw Stroke Diameter (Inch) 0.216"
Piston Stroke Length (inch) 0.472"
Maximum RPM 6000 RPM
