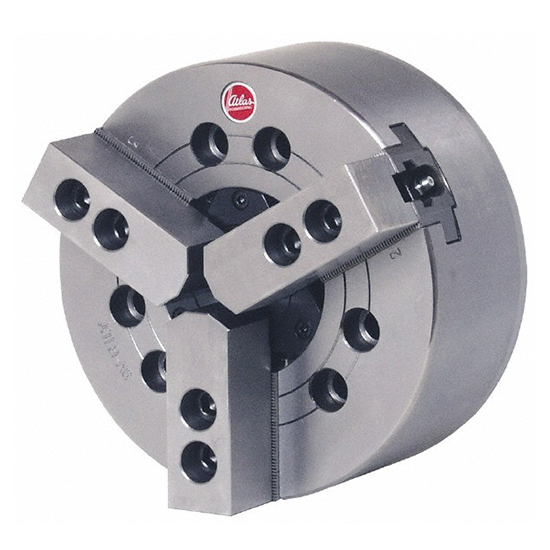

Pratt Burnerd America ATL8-A6 | 8" 3 Jaw Power Chuck A-6 Mount

$2,595.00
Ships:
From Partner Facility
Brand:
Pratt Burnerd America
Chuck Diameter (Inch):
8"
Number of Jaws:
3
Mount:
A-6
Through-Hole Diameter (Decimal Inch):
2.0500"
Through-Hole Diameter (mm):
52mm
Chuck Actuation Style:
Drawbar
Operation Type:
Hydraulic
Ships:
From Partner Facility
IsDiscontinued:
SKU:
50000097
UPC:
Weight:
55.00 LBS
Shipping:
Free Shipping

Product Specifications
Weight 52 lbs
Brand Pratt Burnerd America
Chuck Size 8"
Thru-Hole Diameter (mm) 52mm
Thru-Hole Diameter (Inch) 2.05"
Mount A-6
Maximum Gripping Capacity (Inch) 8.27"
Minimum Gripping Capacity (Inch) 0.512"
Maximum Gripping Force (lb/f) 19,332 lb/f
Maximum Draw Bar Pull (lb/f) 7,824 lb/f
Jaw Stroke Diameter (Inch) 0.291"
Piston Stroke Length (inch) 0.630"
Maximum RPM 5000 RPM
