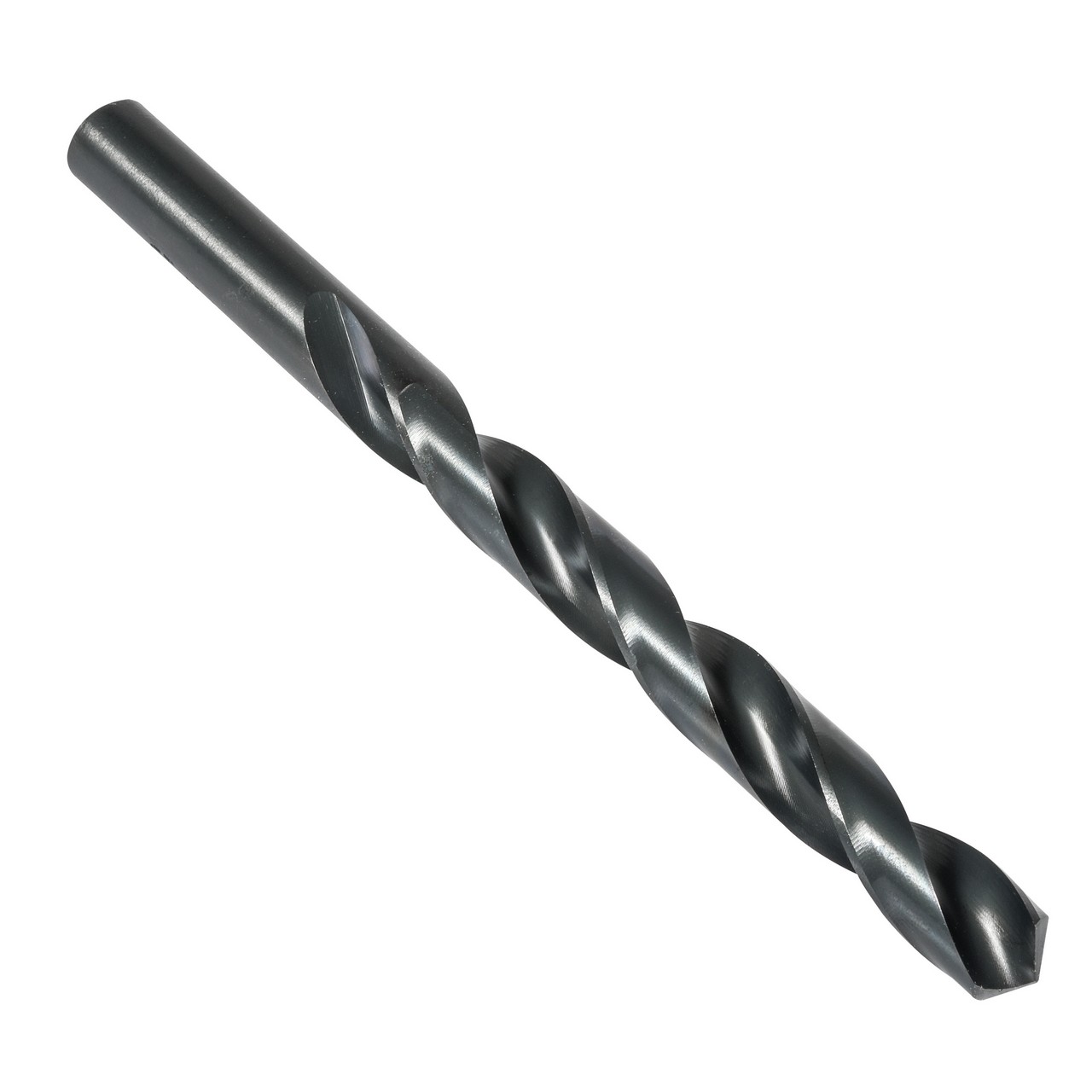

301JD Jobber drill bits from Precision are manufactured from premium High Speed Steel and are suitable for drilling many materials including aluminum, steels and stainless steel and come in a wide range of metric sizes from 1.00 mm to 17.50 mm. The steam oxide finish ensures clean and accurate holes by preventing workpiece material from sticking to the cutting edges of the tool, whilst the 118 degree conventional point provides strength and is easy to regrind for use over and over again. 301JD jobber drills are designed for the maintenance and repair professional for use in hand held and machine applications.
Product Specifications
| EDP Number | 46480803 |
| Material Code | HSS |
| Basic Standard Group | ANSI |
| Point Angle | 118 |
| Cutting Diameter (mm) | 5.16 mm |
| Cutting Diameter (Inch) | 0.2031" |
| Cutting Diameter (Fractional Inch) | 13/64" |
| Overall Length (mm) | 92.08 mm |
| Overall Length (Inch) | 3.625 |
| Overall Length (Fractional Inch) | 3.5/8 |
| Length Chip Flute (Fractional Inch) | 2.7/16" |
| Hand Direction | Right |
| Drill Length | Jobber |
| Coating | Steam Tempered |
| Surface Color | Black |
| Surface Treatment | Steam Tempered |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Precision Twist Drill
Drill Bit Size (Inch):
13/64"
Drill Bit Size (Decimal Inch):
0.2031"
Drill Bit Size (mm):
5.16mm
Drill Point Angle:
118°
Overall Length (Inch):
3-5/8"
Overall Length (Decimal Inch):
3.6250"
Overall Length (mm):
92.08mm
Cutting Direction:
Right
Material:
HSS
Finish/Coating:
Steam Tempered
