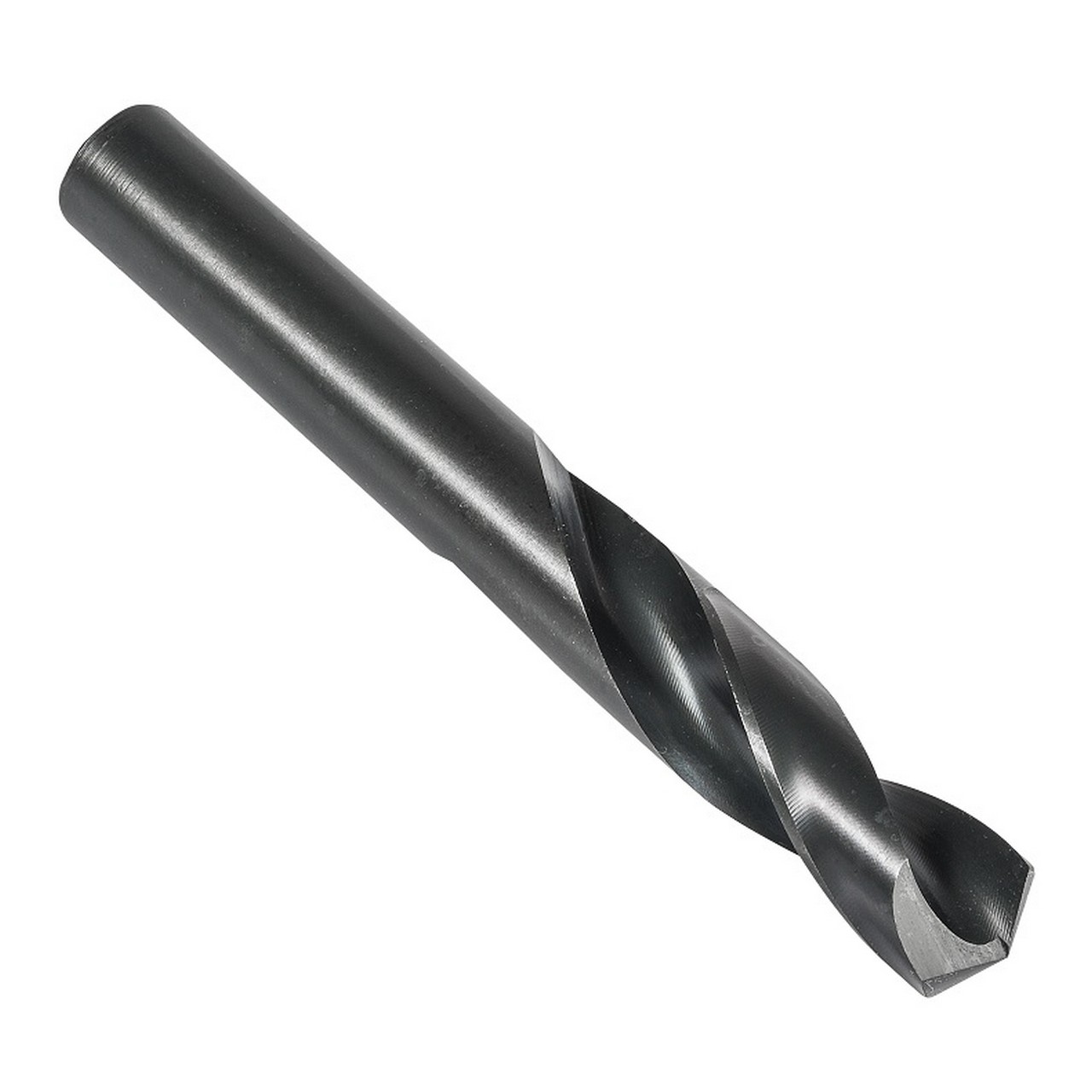

Designed for the maintenance and repair professional for use in a wide range of hand held and machine applications, 311SM screw machine length drill bits come in wire gauge sizes from 60 to 1 and are manufactured from High Speed Steel so can be used for drilling many different materials including steels, stainless steel and aluminum. They have a 135 degree split point which reduced the push force needed and helps with self-centering and no more wandering all over the surface of the workpiece, and to ensure a clean and accurate hole, 311SM drills from Precision have a steam oxide finish to prevent workpiece material from sticking to the cutting surfaces of the drill.
Product Specifications
| EDP Number | 46480939 |
| Material Code | HSS |
| Basic Standard Group | ANSI |
| Point Angle | 135 |
| Cutting Diameter (mm) | 7.14 mm |
| Cutting Diameter (Inch) | 0.281" |
| Cutting Diameter (Imperial Letter) | K |
| Overall Length (mm) | 68.26 mm |
| Overall Length (Inch) | 2.6875 |
| Overall Length (Fractional Inch) | 2.11/16 |
| Length Chip Flute (Fractional Inch) | 1.1/2" |
| Hand Direction | Right |
| Drill Length | Stub |
| Coating | Steam Tempered |
| Surface Color | Black |
| Surface Treatment | Steam Tempered |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Precision Twist Drill
Drill Bit Size (Inch):
9/32"
Drill Bit Size (Decimal Inch):
0.2810"
Drill Bit Size (mm):
7.14mm
Flute Length (Inch):
1-1/2"
Flute Length (Decimal Inch):
1.5"
Flute Length (mm):
38.1mm
Drill Point Angle:
135°
Overall Length (Inch):
2-11/16"
Overall Length (Decimal Inch):
2.6875"
Overall Length (mm):
68.26mm
Material:
HSS
Finish/Coating:
Steam Tempered
