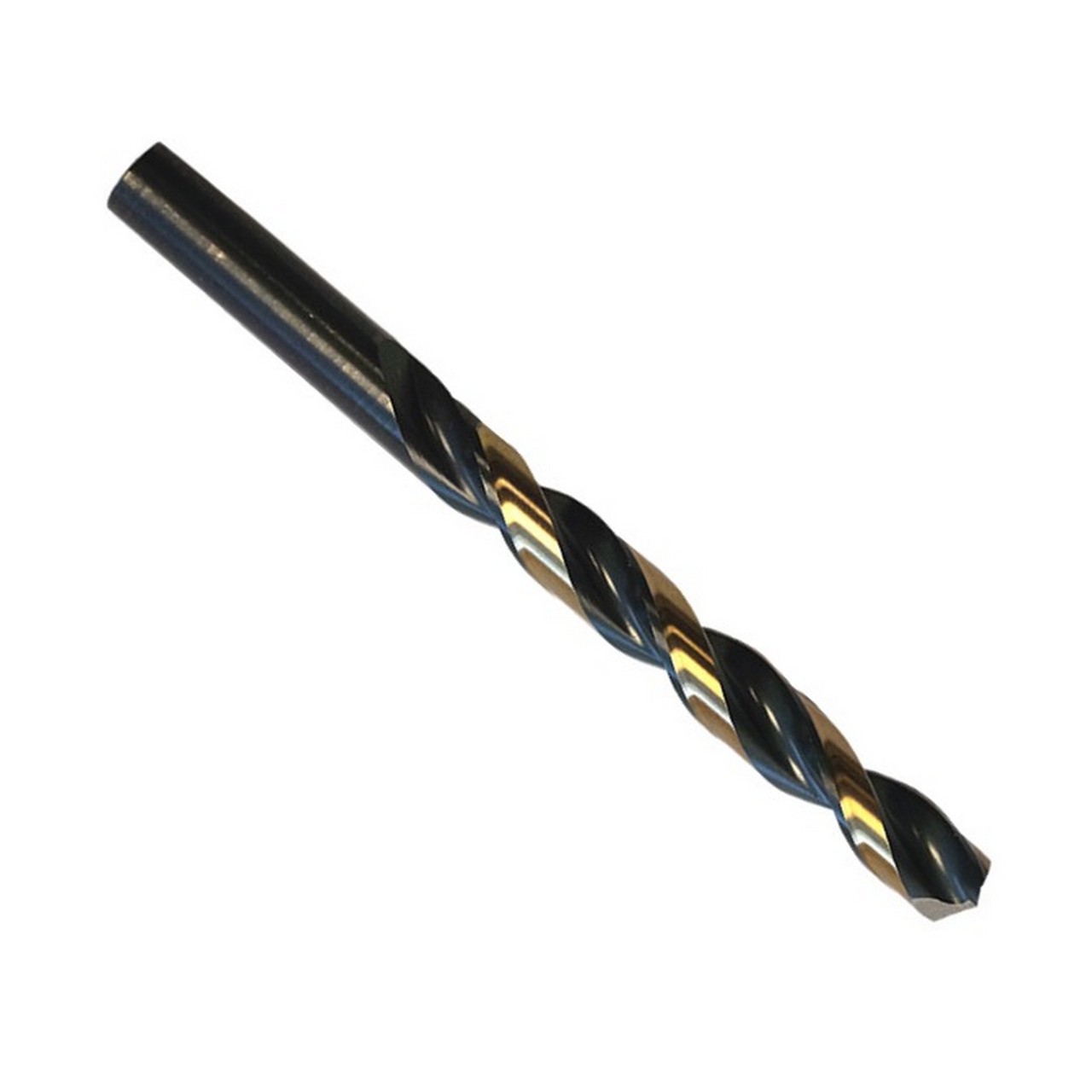

Part of the Precision range of drills, 332HD heavy duty jobber drills are available in a wide range of fractional sizes from 1/16" to 1/2", with a dual steam oxide finish for clean and accurate holes, by preventing workpiece material from sticking to the cutting surfaces of the drill. The 135 degree split point is a great help with self centering and also means you do not need to use as much force to drill into the workpiece. Manufactured from premium High Speed Steel, the tools can be used for drilling a number of different materials, including steels, stainless steel and aluminum, and are suitable for use in the many different machine and hand held applications of the maintenance and repair professional.
Product Specifications
| EDP Number | 47233706 |
| Material Code | HSS |
| Basic Standard Group | ANSI |
| Point Angle | 135 |
| Cutting Diameter (mm) | 4.04 mm |
| Cutting Diameter (Inch) | 0.159" |
| Overall Length (mm) | 82.55 mm |
| Overall Length (Inch) | 3.25 |
| Overall Length (Fractional Inch) | 3.1/4 |
| Length Chip Flute (Fractional Inch) | 2.1/8" |
| Spiral Form | Standard Spiral |
| Hand Direction | Right |
| Drill Length | Jobber |
| Coating | ST/Bronze |
| Surface Color | Blue & Bronze |
| Surface Treatment | Steam Tempered |
| Cutting Diameter (Wire Gauge Size) | N21 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Precision Twist Drill
Drill Bit Size (Inch):
5/32"
Drill Bit Size (Decimal Inch):
0.1590"
Drill Bit Size (mm):
4.04mm
Drill Point Angle:
135°
Overall Length (Inch):
3-1/4"
Overall Length (Decimal Inch):
3.2500"
Overall Length (mm):
82.55mm
Cutting Direction:
Right
Material:
HSS
Finish/Coating:
ST/Bronze
