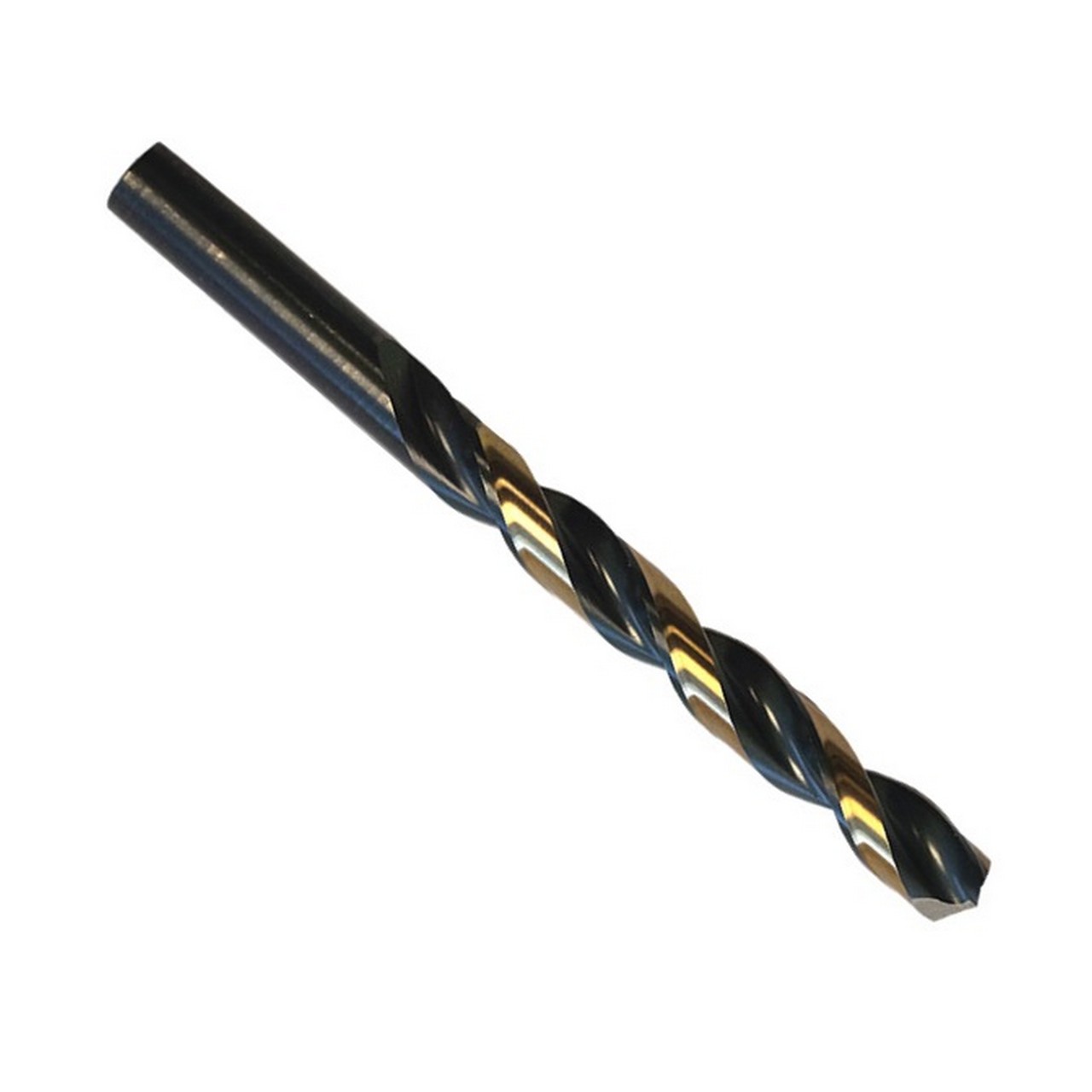

Precision Twist Drill 7233723 | 0.1015" Diameter x 135 Degree Point Angle x 2.5" OAL ST/Bronze Coated Jobber Length Drill Bit

SKU: 10114081 Weight: 0.07 LBS Minimum Purchase: 12 unit
UPC: 7320760717264
$1.99 $1.64
(You save $0.35)
Total Price: $1.64
Ships: From Partner Facility
Shipping: Calculated at Checkout

About This Item

Part of the Precision range of drills, 332HD heavy duty jobber drills are available in a wide range of fractional sizes from 1/16" to 1/2", with a dual steam oxide finish for clean and accurate holes, by preventing workpiece material from sticking to the cutting surfaces of the drill. The 135 degree split point is a great help with self centering and also means you do not need to use as much force to drill into the workpiece. Manufactured from premium High Speed Steel, the tools can be used for drilling a number of different materials, including steels, stainless steel and aluminum, and are suitable for use in the many different machine and hand held applications of the maintenance and repair professional.

Product Specifications
EDP Number47233723
Material CodeHSS
Basic Standard GroupANSI
Point Angle135
Cutting Diameter (mm)2.58 mm
Cutting Diameter (Inch)0.1015"
Overall Length (mm)63.5 mm
Overall Length (Inch)2.5
Overall Length (Fractional Inch)2.1/2
Length Chip Flute (Fractional Inch)1.7/16"
Spiral FormStandard Spiral
Hand DirectionRight
Drill LengthJobber
CoatingST/Bronze
Surface ColorBlue & Bronze
Surface TreatmentSteam Tempered
Cutting Diameter (Wire Gauge Size)N38
