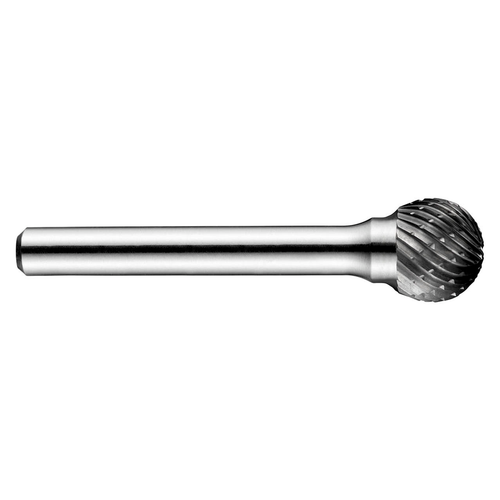

Ball burr (D shape), diameter 3/16" with 1/8" length of cut, 2" overall length and 1/4" shank, solid carbide with bright finish, DC double cut flute style with close spaced edges for intricate carving, metal engraving and welding preparation in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials.
Product Specifications
| Manufacturer Part Number | SD-01DC |
| Cutting Diameter (Inch) | 3/16" |
| Cutting Diameter (Decimal Inch) | 0.188" |
| Cutting Diameter (mm) | 4.76mm |
| Connection Diameter (mm) | 6.35mm |
| Connection Diameter (Decimal Inch) | 0.250" |
| Connection Diameter (Inch) | 1/4" |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (mm) | 50.80mm |
| Usable Length (Inch) | 1/8" |
| Shank Style | Cylindrical shank |
| Burr Shape | D - Ball Shape |
| Burr Type Code | Double Cut Geometry |
| Material | HM |
| Coating | Bright |
| Product Type | Ball Burr |
| Country of Origin | United States of America |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Precision Twist Drill
Cutting Diameter (Inch):
3/16"
Cutting Diameter (Decimal Inch):
0.1880"
Cutting Diameter (mm):
4.76mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Shank Style:
Cylindrical
Finish/Coating:
Bright
Material:
HM
