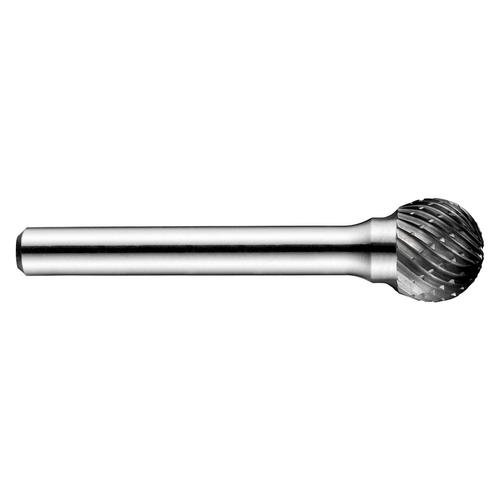

Ball burr (D shape), diameter 1/4" with 7/32" length of cut, 6.3/4" overall length and 1/4" shank, solid carbide with bright finish, DC double cut flute style with close spaced edges for intricate carving, metal engraving and welding preparation in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials.
Product Specifications
| Manufacturer Part Number | SD-10DC-X |
| Cutting Diameter (Inch) | 1/4" |
| Cutting Diameter (Decimal Inch) | 0.250" |
| Cutting Diameter (mm) | 6.35mm |
| Connection Diameter (mm) | 6.35mm |
| Connection Diameter (Decimal Inch) | 0.250" |
| Connection Diameter (Inch) | 1/4" |
| Overall Length (Inch) | 6-3/4" |
| Overall Length (Decimal Inch) | 6.750" |
| Overall Length (mm) | 171.45mm |
| Usable Length (Inch) | 7/32" |
| Shank Style | Cylindrical shank |
| Burr Shape | D - Ball Shape |
| Burr Type Code | Double Cut Geometry |
| Material | HM |
| Coating | Bright |
| Product Type | Ball Burr |
| Country of Origin | United States of America |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Precision Twist Drill
Cutting Diameter (Inch):
1/4"
Cutting Diameter (Decimal Inch):
0.2500"
Cutting Diameter (mm):
6.35mm
Overall Length (Inch):
6-3/4"
Overall Length (Decimal Inch):
6.7500"
Overall Length (mm):
171.45mm
Shank Style:
Cylindrical
Finish/Coating:
Bright
Material:
HM
interval quantity:
1
