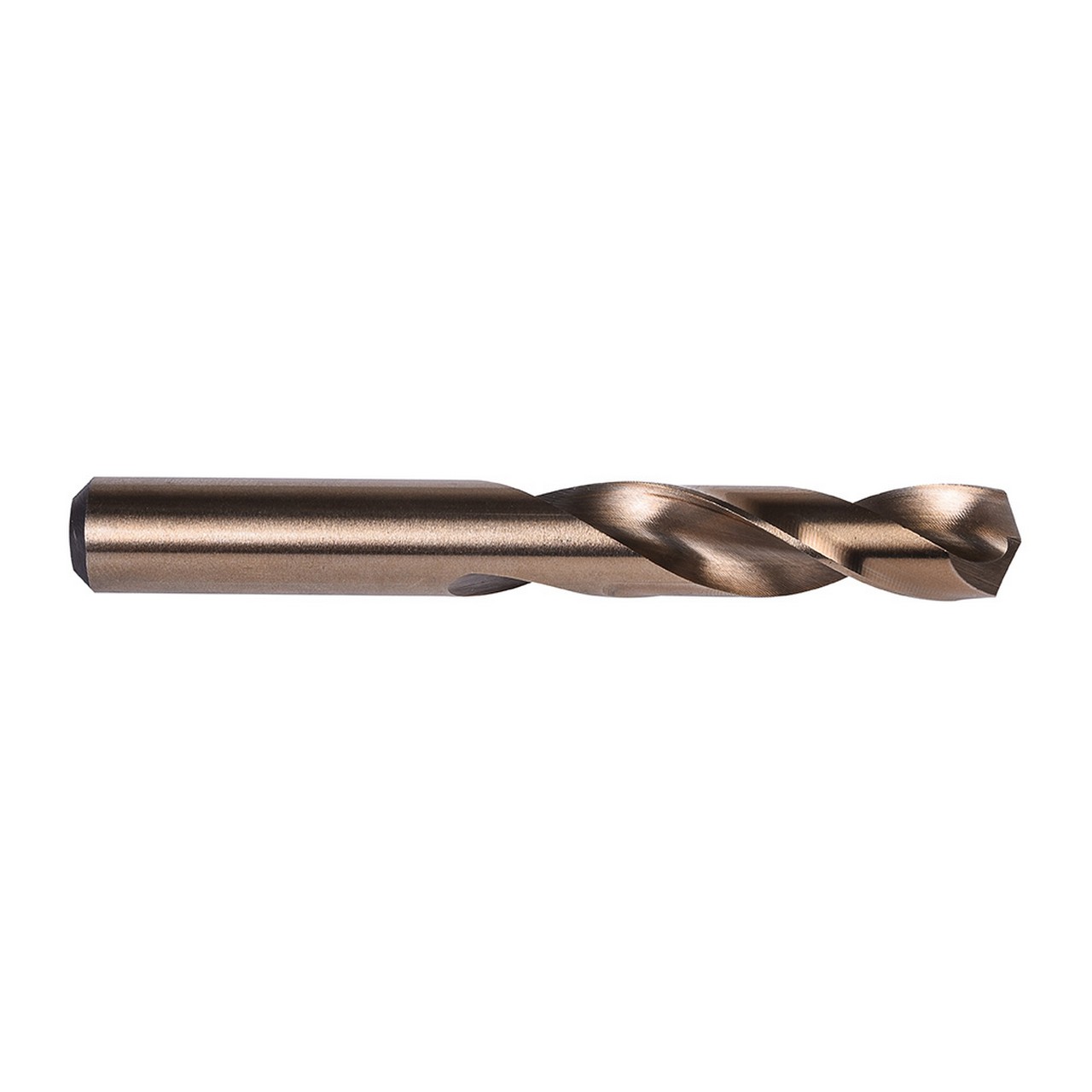

M42CO heavy duty screw machine length drill bits are recommended for use in difficult materials and applications and are available in letter sizes from A to Z, with a 135 degree split point for good self-centering and reducing push force. The premium High Speed cobalt used in manufacture means the drills are suitable for drilling hard materials including tool steel, whilst the bronze oxide finish prevents workpiece material from sticking to the cutting edges of the tool to ensure a clean and accurate hole.
Product Specifications
| EDP Number | 42306 |
| Material Code | HSS-E |
| Basic Standard Group | ANSI |
| Usable Length | 2.5 |
| Point Angle | 135 |
| Cutting Diameter (mm) | 6.53 mm |
| Cutting Diameter (Inch) | 0.257" |
| Cutting Diameter (Imperial Letter) | F |
| Overall Length (mm) | 66.68 mm |
| Overall Length (Inch) | 2.625 |
| Overall Length (Fractional Inch) | 2.5/8 |
| Length Chip Flute (Fractional Inch) | 1.7/16" |
| Hand Direction | Right |
| Drill Length | Stub |
| Coating | Bronze |
| Surface Color | Bronze |
| Surface Treatment | Steam Tempered |
