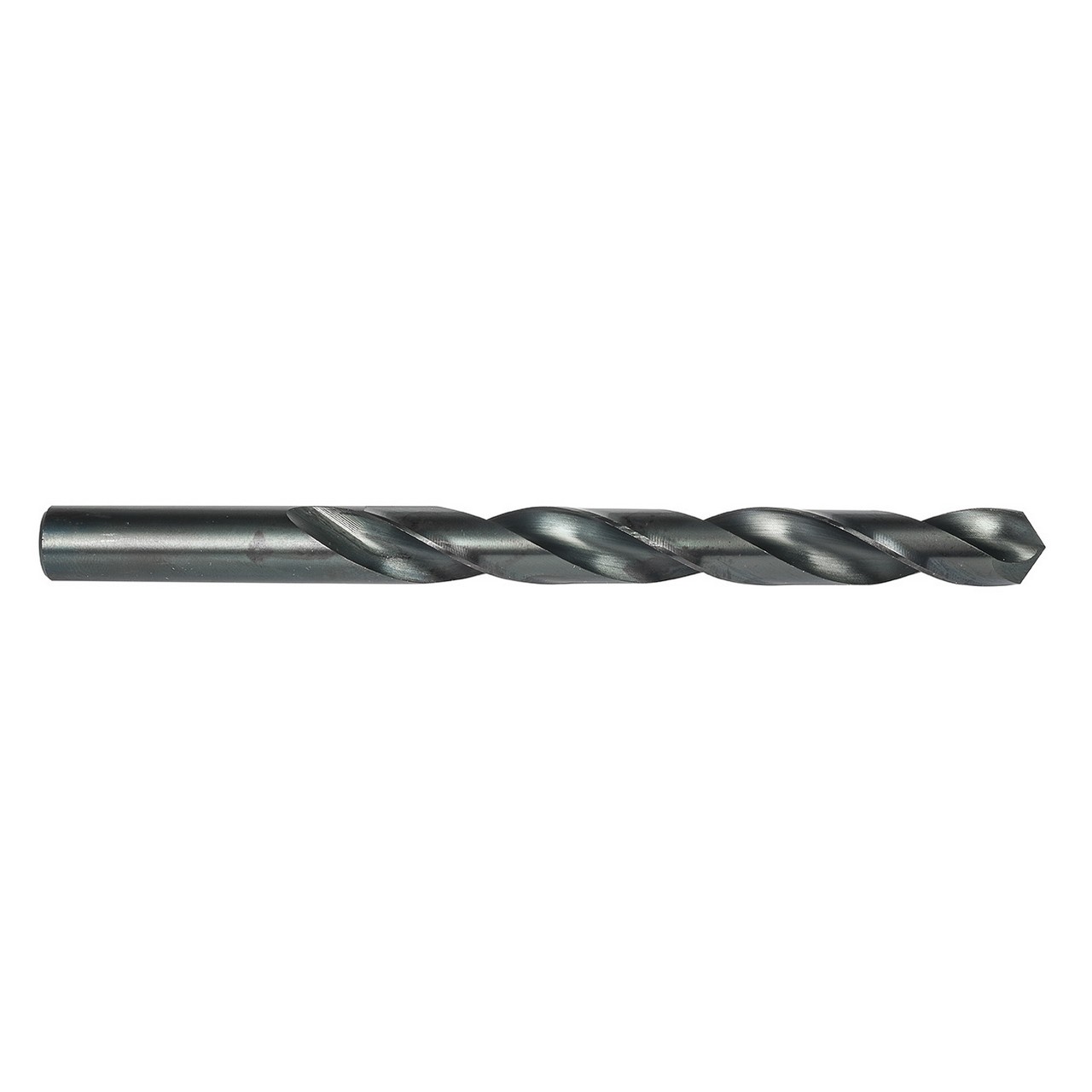

R10B jobber drills are available in fractional sizes from 1/16" to 1/2" and are very versatile, being suitable for both hand held and machine applications. They have a steam oxide finish which ensures clean, accurate holes by preventing workpiece material from sticking to the cutting surfaces of the drill, and are manufactured from premium High Speed steel for use in a wide range of materials including aluminum, stainless steel and steel. R10B jobber drills have a split point to reduce the push force needed and as an aid to self-centering, producing more rounded holes.
Product Specifications
| EDP Number | 10212 |
| Material Code | HSS |
| Basic Standard Group | NAS907 |
| Usable Length | 4 |
| Point Angle | 135 |
| Cutting Diameter (mm) | 4.76 mm |
| Cutting Diameter (Inch) | 0.1875" |
| Cutting Diameter (Fractional Inch) | 3/16" |
| Overall Length (mm) | 88.9 mm |
| Overall Length (Inch) | 3.5 |
| Overall Length (Fractional Inch) | 3.1/2 |
| Length Chip Flute (Fractional Inch) | 2.5/16" |
| Hand Direction | Right |
| Drill Length | Jobber |
| Coating | Steam Tempered |
| Surface Color | Black |
| Surface Treatment | Steam Tempered |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Precision Twist Drill
Drill Bit Size (Inch):
3/16"
Drill Bit Size (Decimal Inch):
0.1875"
Drill Bit Size (mm):
4.76mm
Drill Point Angle:
135°
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.9mm
Cutting Direction:
Right
Material:
HSS
Finish/Coating:
Steam Tempered
