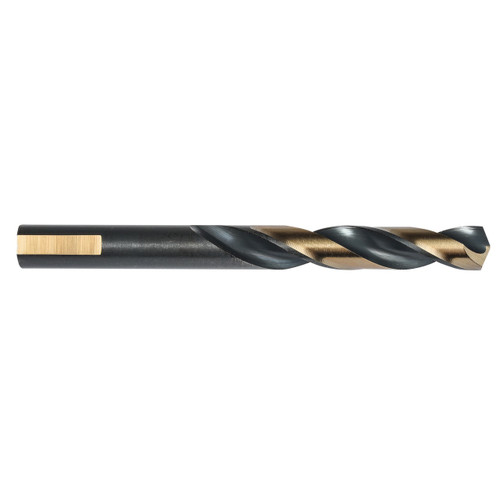

Manufactured from High Speed cobalt (HSCo), R10CO NAS907 type J jobber drills are available in sizes from 1/64" to 11/16" and can be used for drilling hard materials including tool steel. The 135 degree split point is an aid to self-centering and reduces the amount of force needed to drill the hole, whilst the bronze oxide finish prevents workpiece material from sticking to the surfaces of the drill so you get clean, accurate holes. R10CO jobber drills have a heavy duty design, recommended for use in difficult materials and applications.
Product Specifications
| EDP Number | 10304 |
| Material Code | HSS-E |
| Basic Standard Group | NAS907 |
| Usable Length | 4 |
| Point Angle | 135 |
| Cutting Diameter (mm) | 1.59 mm |
| Cutting Diameter (Inch) | 0.0625" |
| Cutting Diameter (Fractional Inch) | 1/16" |
| Overall Length (mm) | 47.63 mm |
| Overall Length (Inch) | 1.875 |
| Overall Length (Fractional Inch) | 1.7/8 |
| Length Chip Flute (Fractional Inch) | 7/8" |
| Hand Direction | Right |
| Drill Length | Jobber |
| Coating | Bronze |
| Surface Color | Bronze |
| Surface Treatment | Steam Tempered |
| Cutting Diameter (Wire Gauge Size) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Precision Twist Drill
Drill Bit Size (Inch):
1/16"
Drill Bit Size (Decimal Inch):
0.0625"
Drill Bit Size (mm):
1.59mm
Drill Point Angle:
135°
Overall Length (Inch):
1-7/8"
Overall Length (Decimal Inch):
1.8750"
Overall Length (mm):
47.63mm
Cutting Direction:
Right
Material:
HSS-E
Finish/Coating:
Bronze
