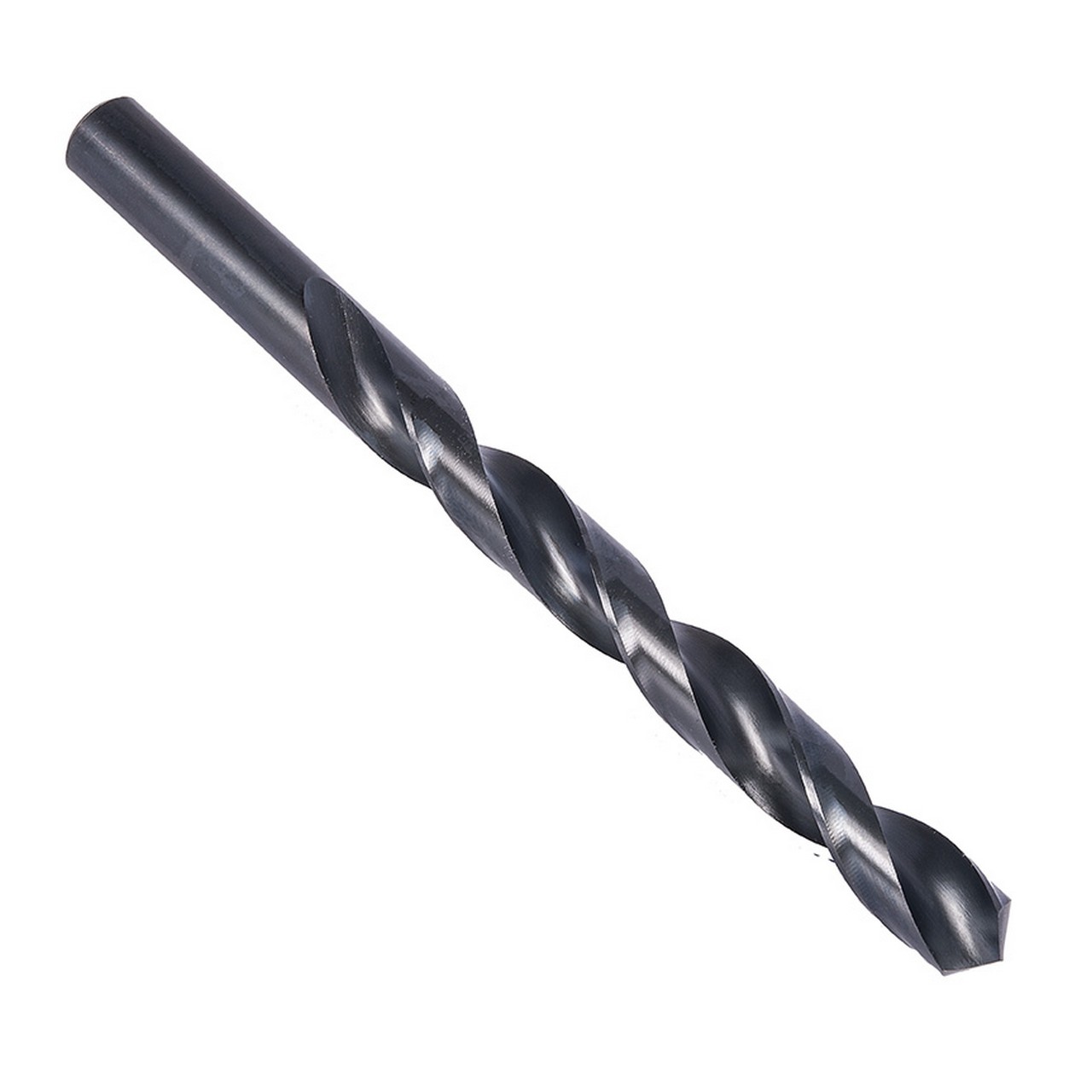

R18 jobber drills have a strong 118 degree conventional point which is easy to re-grind giving great economy The drills are manufactured from premium High Speed steel (HSS) for drilling a wide range of materials including steel, stainless steel and aluminum, and a steam oxide finish to prevent workpiece material from sticking to the cutting edges of the drill for clean and accurate holes. R18 jobber drills can be used in many different hand held and machine applications, and come in wire gauge sizes from 80 to 1.
Product Specifications
| EDP Number | 18011 |
| Material Code | HSS |
| Basic Standard Group | ANSI |
| Usable Length | 4 |
| Point Angle | 118 |
| Cutting Diameter (mm) | 4.85 mm |
| Cutting Diameter (Inch) | 0.191" |
| Overall Length (mm) | 88.9 mm |
| Overall Length (Inch) | 3.5 |
| Overall Length (Fractional Inch) | 3.1/2 |
| Length Chip Flute (Fractional Inch) | 2.5/16" |
| Hand Direction | Right |
| Drill Length | Jobber |
| Coating | Steam Tempered |
| Surface Color | Black |
| Surface Treatment | Steam Tempered |
| Cutting Diameter (Wire Gauge Size) | N11 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Precision Twist Drill
Drill Bit Size (Inch):
3/16"
Drill Bit Size (Decimal Inch):
0.1910"
Drill Bit Size (mm):
4.85mm
Drill Point Angle:
118°
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.9mm
Cutting Direction:
Right
Material:
HSS
Finish/Coating:
Steam Tempered
