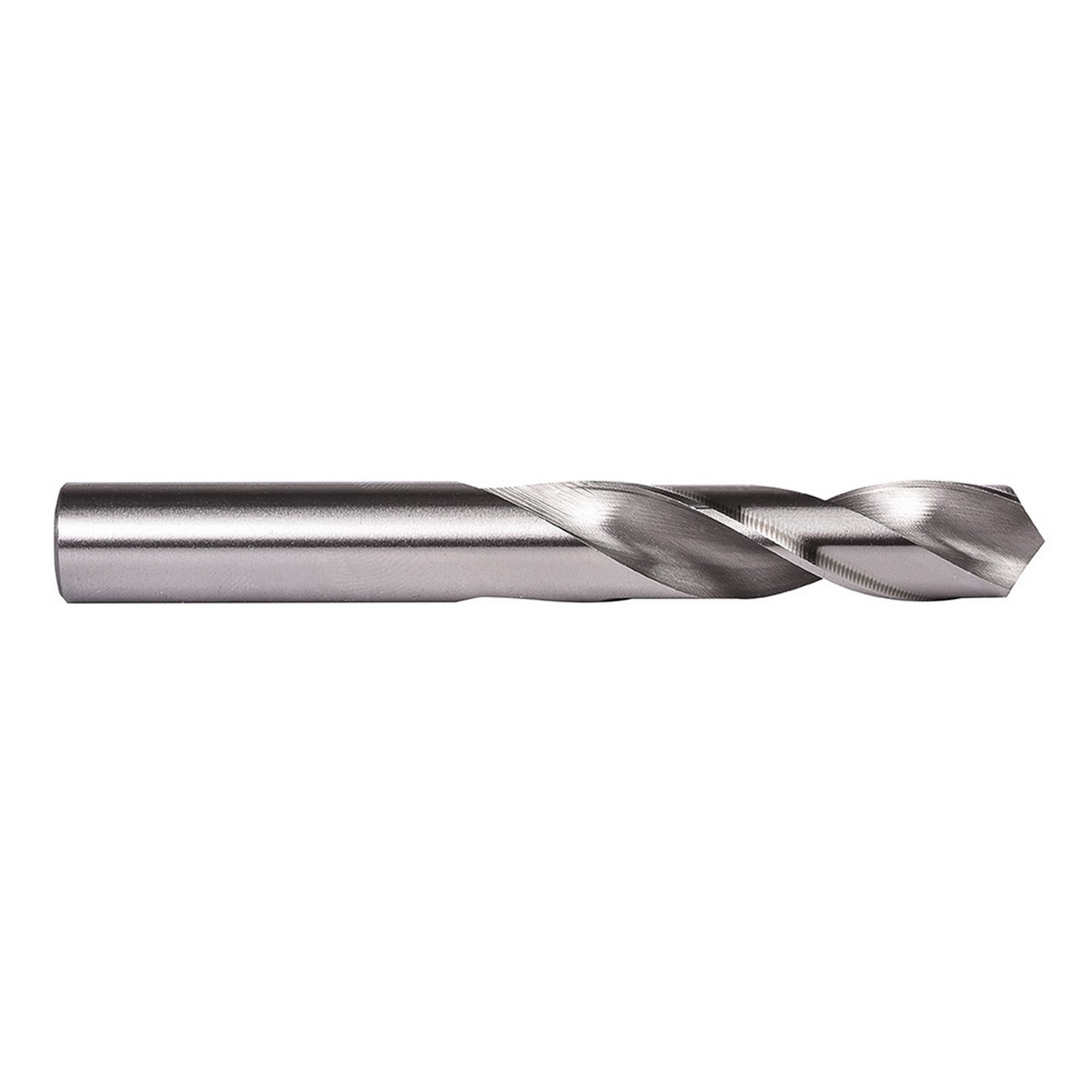

Precision Twist Drill R42L | 0.29" Diameter x 118 Degree Point Angle x 2.75" OAL Bright Coated Screw Machine Length Drill Bit

$4.57
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Precision Twist Drill
Drill Bit Size (Inch):
19/64"
Drill Bit Size (Decimal Inch):
0.2900"
Drill Bit Size (mm):
7.37mm
Drill Point Angle:
118°
Flute Length (Inch):
1-9/16"
Flute Length (Decimal Inch):
1.56"
Flute Length (mm):
39.69mm
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7500"
Overall Length (mm):
69.85mm
Material:
HSS
Finish/Coating:
Bright
Cutting Direction:
Right
SKU:
10109165
UPC:
86071420121
Weight:
0.60 LBS
Minimum Purchase:
12 units
Shipping:
Calculated at Checkout

R42 screw machine length drills are manufactured from High Speed steel and are suitable for drilling a wide range of materials including aluminum, steel and stainless steel, and are available in letter sizes from A to Z. The drills have a strong 118 degree conventional point which can be easily re-ground, so they can be used many times,. The bright finish means you get accurate clean holes as workpiece material is prevented from sticking to the cutting surfaces of the drills, and they can be used in many different hand-held and machine applications.


Product Specifications
EDP Number 42012
Material Code HSS
Basic Standard Group ANSI
Usable Length 2.5
Point Angle 118
Cutting Diameter (mm) 7.37 mm
Cutting Diameter (Inch) 0.29"
Cutting Diameter (Imperial Letter) L
Overall Length (mm) 69.85 mm
Overall Length (Inch) 2.75
Overall Length (Fractional Inch) 2-3/4
Length Chip Flute (Fractional Inch) 1-9/16"
Hand Direction Right
Drill Length Stub
Coating Bright
Surface Color Bright Silver
Surface Treatment Original surface
Cutting Diameter (Wire Gauge Size)
