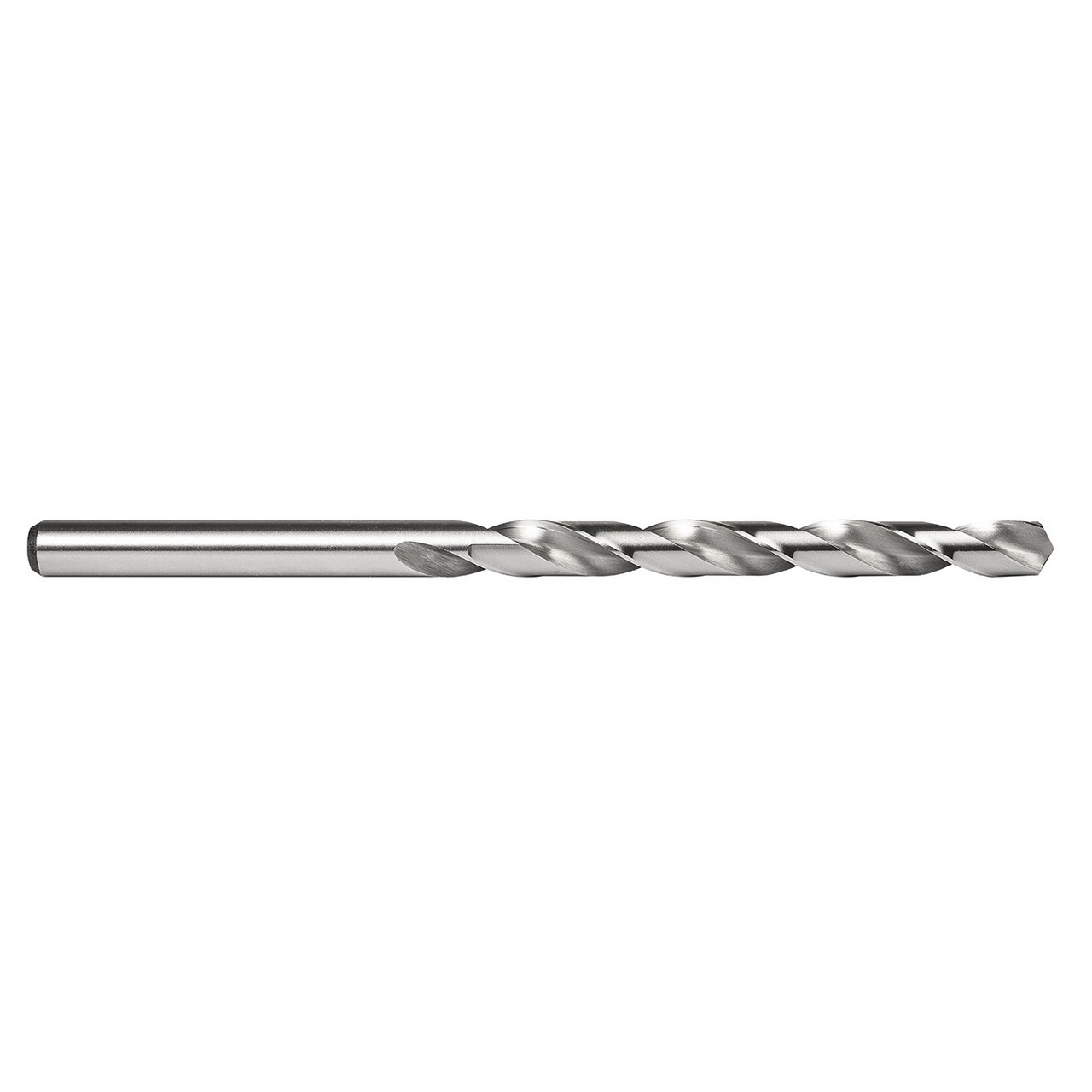

Precision Twist Drill R55I | 0.272" Diameter x 118 Degree Point Angle x 6.25" OAL Bright Coated Taper Length Drill Bit

$15.89
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Precision Twist Drill
Drill Bit Size (Inch):
17/64"
Drill Bit Size (Decimal Inch):
0.2720"
Drill Bit Size (mm):
6.91mm
Flute Length (Inch):
3-7/8"
Flute Length (Decimal Inch):
3.88"
Flute Length (mm):
98.43mm
Overall Length (Inch):
6-1/4"
Overall Length (Decimal Inch):
6.2500"
Overall Length (mm):
158.75mm
Drill Point Angle:
118°
Finish/Coating:
Bright
Material:
HSS
SKU:
10109822
UPC:
86071550095
Weight:
1.23 LBS
Minimum Purchase:
6 units
Shipping:
Calculated at Checkout

R55 taper length drills have a 118 degree conventional point for easy re-grinding. The bright finish prevents workpiece material from sticking to the cutting surfaces of the drill, which in turn means more accurate holes are produced. Manufactured from premium High Speed steel, the drills can be used in a wide range of materials including stainless steel, aluminum and steel and are available in letter sizes from A to Z. For drilling deeper holes and for applications where you need a longer reach, R55 taper length drills are recommended.


Product Specifications
EDP Number 55009
Material Code HSS
Basic Standard Group ANSI
Usable Length 6
Point Angle 118
Cutting Diameter (mm) 6.91 mm
Cutting Diameter (Inch) 0.272"
Cutting Diameter (Imperial Letter) I
Overall Length (mm) 158.75 mm
Overall Length (Inch) 6.25
Overall Length (Fractional Inch) 6.1/4
Length Chip Flute (Fractional Inch) 3.7/8"
Hand Direction Right
Drill Length Taper Length
Coating Bright
Surface Color Bright Silver
Surface Treatment Original surface
