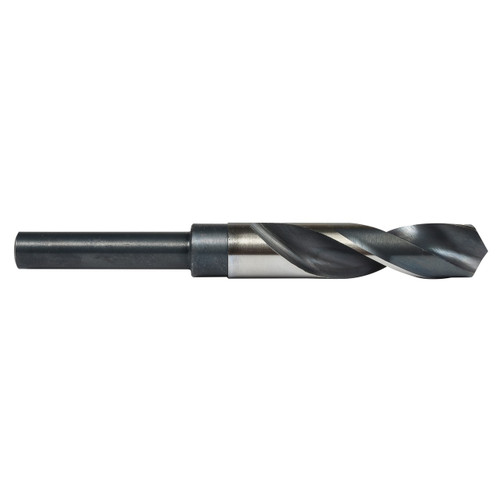

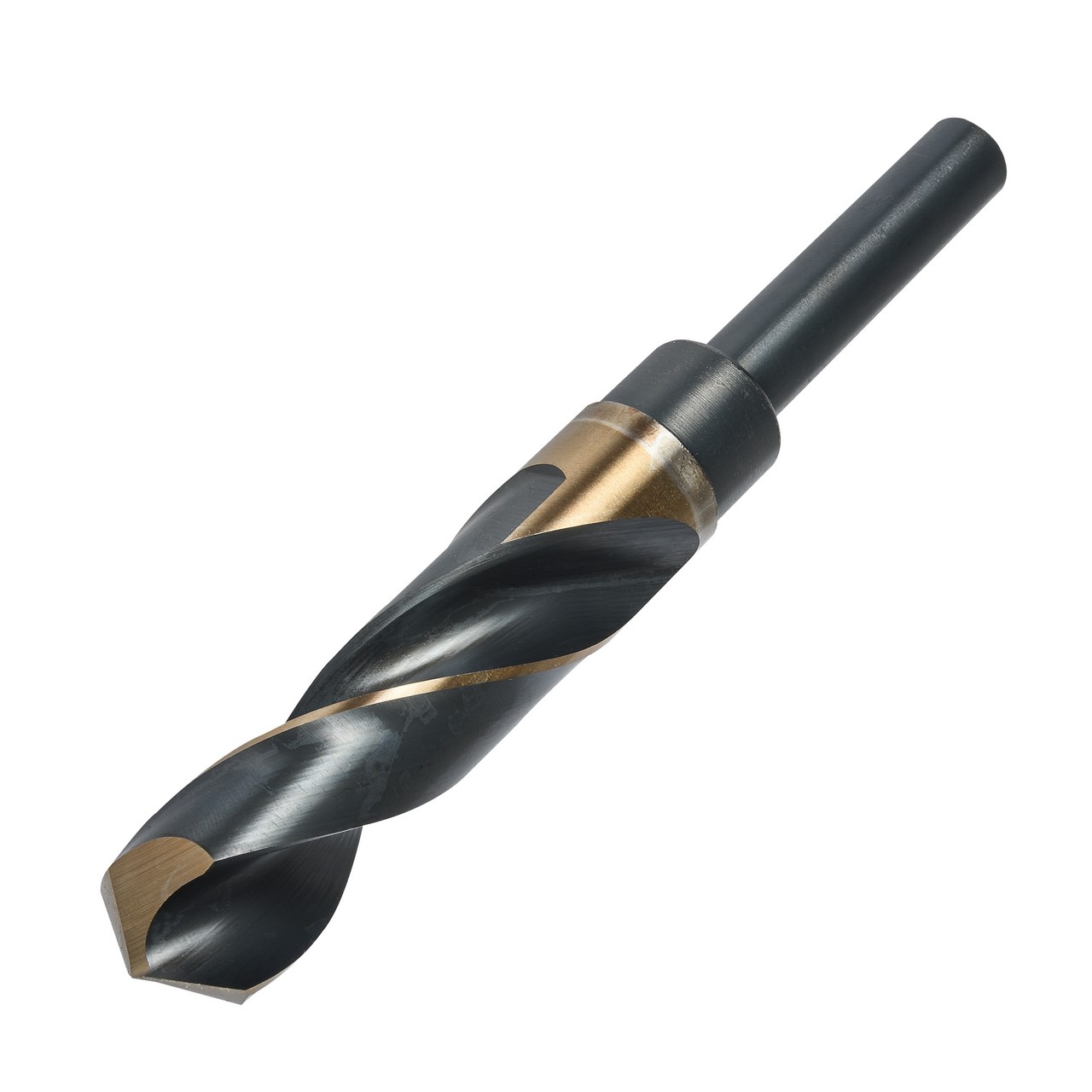

R56CO drills are manufactured from High Speed cobalt and are suitable for drilling harder materials including tool steel. All of the drills have a 1/2" parallel shank which means you can use even large diameters in conventional hand held power tools, and a bronze oxide finish to prevent workpiece material from sticking to the cutting surface of the tool helps to produce clean and accurate holes. The 118 degree split point is a great help with self-centering when used by hand, and reduces the force needed to drill the hole. R56CO reduced shank drills are very versatile and can be used in a number of different machine and hand-held applications.
Product Specifications
| EDP Number | 92348 |
| Material Code | HSS-E |
| Basic Standard Group | ANSI |
| Usable Length | 4 |
| Point Angle | 118 |
| Connection Diameter (mm) | 12.7 mm |
| Connection Diameter (Inch) | 0.5" |
| Connection Diameter (Fractional Inch) | 1/2" |
| Cutting Diameter (mm) | 19.05 mm |
| Cutting Diameter (Inch) | 0.75" |
| Cutting Diameter (Fractional Inch) | 3/4" |
| Overall Length (mm) | 152.4 mm |
| Overall Length (Inch) | 6 |
| Overall Length (Fractional Inch) | 6" |
| Length Chip Flute (Fractional Inch) | 3" |
| Hand Direction | Right |
| Drill Length | Standard |
| Coating | ST/Bronze |
| Surface Color | Blue & Bronze |
| Surface Treatment | Steam Tempered |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Precision Twist Drill
Drill Bit Size (Inch):
3/4"
Drill Bit Size (Decimal Inch):
0.7500"
Drill Bit Size (mm):
19.05mm
Drill Point Angle:
118°
Material:
HSS-E
Finish/Coating:
ST/Bronze
Flute Length (Inch):
3"
Flute Length (Decimal Inch):
3"
Flute Length (mm):
76.2mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.4mm
