Features:
- REGO-FIX invented the ER collet
- Superior collet slot design
- Superior surface finish
- Improved clamping length on small diameters
Product Specifications
| Manufacturer Part Number | 1120.04001 |
| TIR (Decimal Inch) | 0.0002" |
| TIR (mm) | 0.005mm |
| Clamping Range (Decimal Inch) | 0.1575" - 0.1181" |
| Clamping Range (mm) | 4.0mm - 3.0mm |
| Length (Decimal Inch) | 0.8750" |
| Width (Decimal Inch) | 0.8750" |
| Height (Decimal Inch) | 1.5000" |
| Coolant Thru Capable | No |

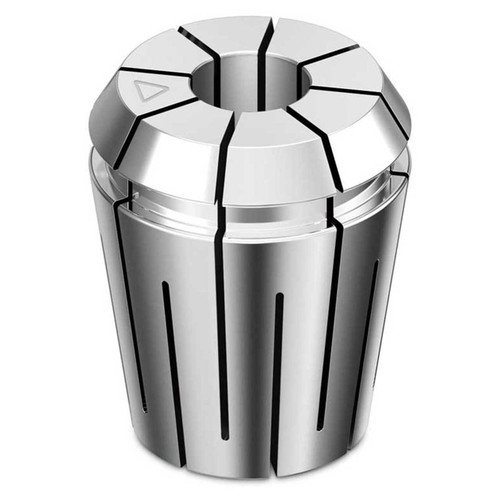

| Product Type | ER20 Collet |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Rego-Fix
Clamping Range (Inch):
3/19" - 2/17"""
Clamping Range (Decimal Inch):
0.1575" - 0.1181"""
Clamping Range (mm):
4.00mm - 3.00mm
TIR (Decimal Inch):
0.0002 "
Collet Series:
ER20
interval quantity:
1
