Features:
- REGO-FIX invented the ER collet
- Superior collet slot design
- Superior surface finish
- CoolBore Coolant Collet
Product Specifications
| Manufacturer Part Number | 1216.06359 |
| Coolant Thru Capable | Yes |
| TIR (Decimal Inch) | 0.0004" |
| TIR (mm) | 0.01mm |
| Clamping Range (Decimal Inch) | 0.25" - 0.2303" |
| Clamping Range (mm) | 6.35mm - 5.85mm |
| Length (Decimal Inch) | 1.0830" |
| Width (Decimal Inch) | 0.6772" |

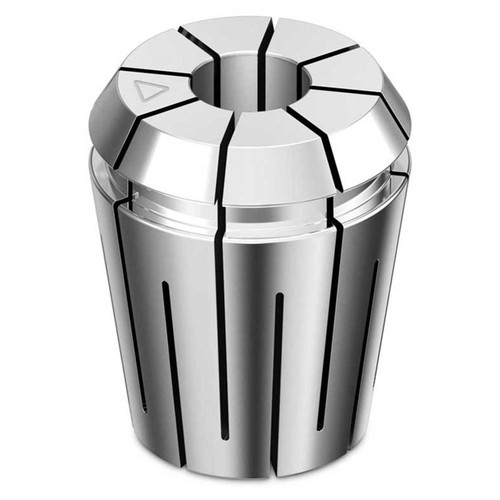

| Product Type | ER16 Collet |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Rego-Fix
Clamping Range (Inch):
1/4" - 3/13"""
Clamping Range (Decimal Inch):
0.2500 - 0.2303"
Clamping Range (mm):
6.35mm - 5.85mm
TIR (Decimal Inch):
0.0004 "
Collet Series:
ER16
interval quantity:
1
