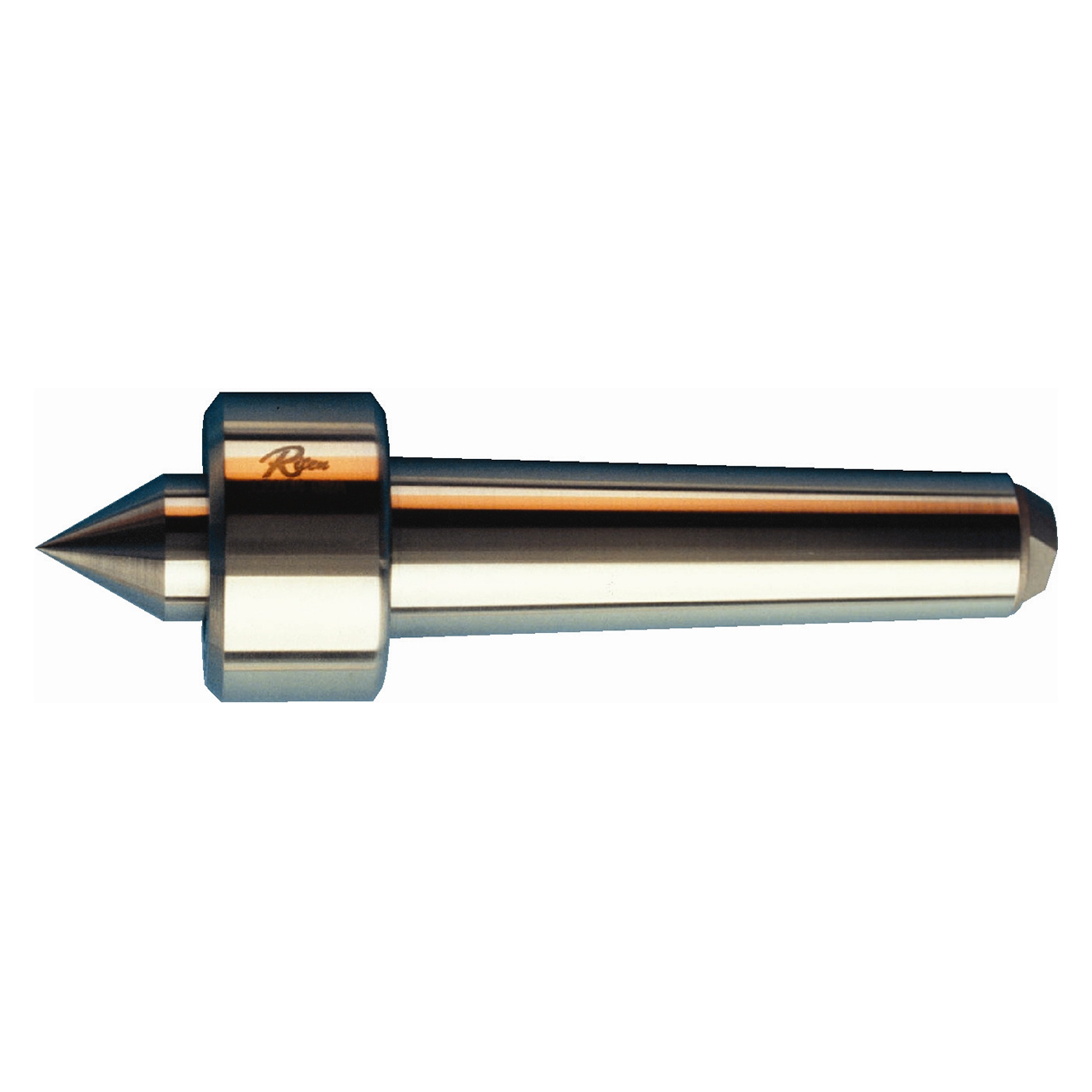

The ultimate live center for grinding is provided by Riten's unique design. Ideal for precision grinding applications; ± 0.00004.

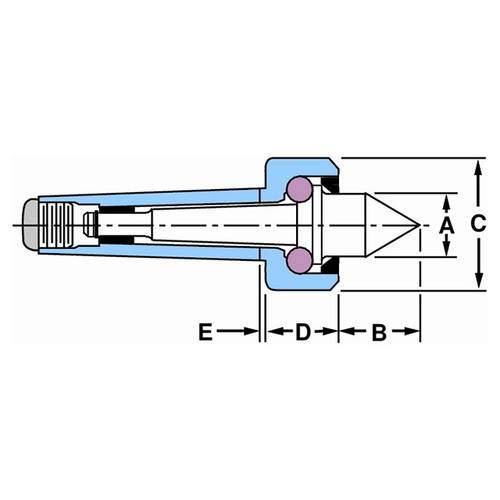

<Product Specifications
| # MFG | 12216 |
| Taper | 16 Jarno |
| Accuracy | ± 0.00004 |
| Point Length (Inch) | 1.500" |
| Max Workpiece Weight (lbs) | 3800 lbs. |
| Head Length (Inch) | 1.406" |
| Head Diameter (Inch) | 2.813" |
| Max RPM | 1000 |
| Point Diameter (Inch) | 1.500" |
| Gage Line to Back of Head (Inch) | 0.188" |
| Point Style | Standard Point |
| Series | Super Accurate Live Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
1.5000"
Length (mm):
38.10mm
Diameter (Inch):
1-1/2"
Diameter (Decimal Inch):
1.5000"
Diameter (mm):
38.10mm
