The ultimate live center for grinding is provided by Riten's unique design. Ideal for precision grinding applications; ± 0.00004.

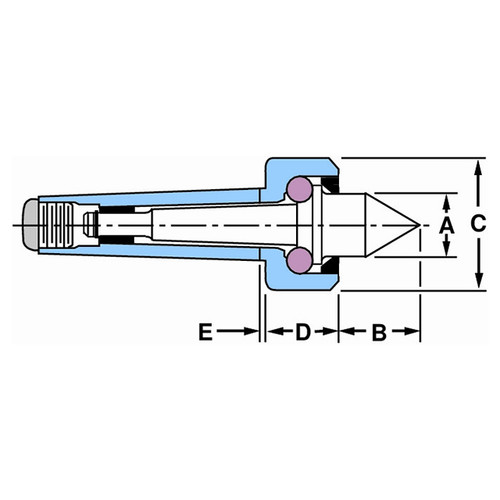

<Product Specifications
| # MFG | 12301 |
| Accuracy | ± 0.00004 |
| Point Length (Inch) | 0.563" |
| Max Workpiece Weight (lbs) | 100 lbs. |
| Head Length (Inch) | 0.750" |
| Head Diameter (Inch) | 1.250" |
| Max RPM | 1000 |
| Point Diameter (Inch) | 0.500" |
| Gage Line to Back of Head (Inch) | 2 1/4" (Entire Length of Shank) |
| Straight Shank | 1/2" |
| Point Style | Standard Point |
| Series | Super Accurate Live Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Shank Diameter (mm):
12.70mm
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (Inch):
1/2"
Length (Inch):
9/16"
Length (Decimal Inch):
0.5630"
Length (mm):
14.30mm
Diameter (Inch):
1/2"
Diameter (Decimal Inch):
0.5000"
Diameter (mm):
12.70mm
interval quantity:
1
