The ultimate live center for grinding is provided by Riten's unique design. Ideal for precision grinding applications; ± 0.00004.

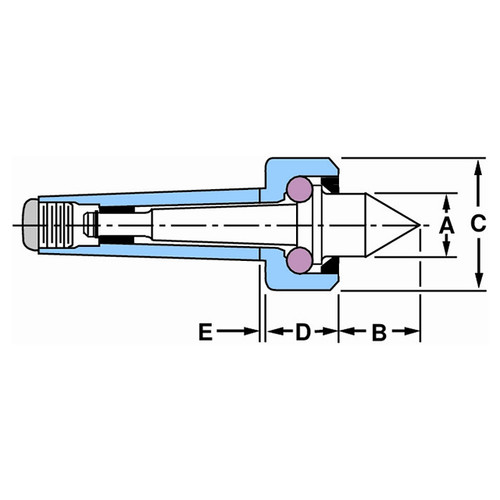

<Product Specifications
| # MFG | 12305 |
| Accuracy | ± 0.00004 |
| Point Length (Inch) | 1.000" |
| Max Workpiece Weight (lbs) | 1800 lbs. |
| Head Length (Inch) | 1.188" |
| Head Diameter (Inch) | 2.125" |
| Max RPM | 1000 |
| Point Diameter (Inch) | 1.000" |
| Gage Line to Back of Head (Inch) | 5" (Entire Length of Shank) |
| Straight Shank | 1-1/4" |
| Point Style | Standard Point |
| Series | Super Accurate Live Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Shank Diameter (mm):
19.05mm
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (Inch):
1-1/4"
Length (Inch):
1"
Length (Decimal Inch):
1.0000"
Length (mm):
25.40mm
Diameter (Inch):
1"
Diameter (Decimal Inch):
1.0000"
Diameter (mm):
25.40mm
