Features:
- Accuracy guaranteed to ± 0.00005.
- Meets the rigid requirements of CNC turning
- Points configuration allows for tool clearance
- Body heat-treated for additional strength
Product Specifications
| # MFG | 14194 |
| Taper | 4 Morse |
| Accuracy | ± 0.00005 |
| Point Length (Inch) | 2.500" |
| Max Workpiece Weight (lbs) | 530 lbs. |
| Head Length (Inch) | 2.313" |
| Head Diameter (Inch) | 2.750" |
| Max RPM | 4000 |
| Point Diameter (Inch) | 1.250" |
| Gage Line to Back of Head (Inch) | 0.375" |
| Carbide Tip Diameter (Inch) | 0.500" |

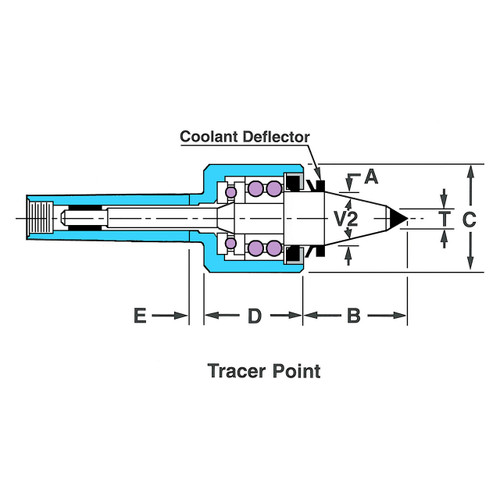

| Point Style | Tracer Point (Carbide Tipped) |
| Series | Sprint Live Centers (Carbide Tipped) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
2.5000"
Length (mm):
63.50mm
Diameter (Inch):
1-1/4"
Diameter (Decimal Inch):
1.2500"
Diameter (mm):
31.75mm
