Features:
- Accuracy to ± 0.0001
- Compensates for thermal expansion
- Low profile

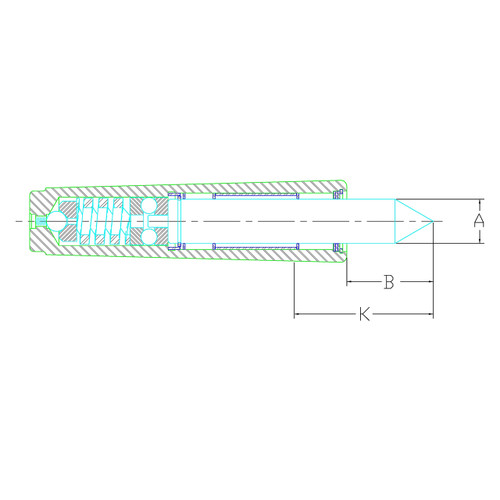

Product Specifications
| # MFG | 17102 |
| Type | Type II Standard Center |
| Taper | 2 Morse |
| Accuracy | ± 0.0001 |
| Overall Length (Inch) | 3.950" |
| Point Length (Inch) | 0.880" |
| Gage Line to Point (Inch) | 1.380" |
| Max Thrust Load (lbs) | 173 lbs. |
| Max Spring Travel (Inch) | 0.094" |
| Max Workpiece Weight (lbs) | 274 lbs. |
| Max RPM | 3000 |
| Point Diameter (Inch) | 0.378" |
| Series | Concentric Spring Loaded Live Centers |
