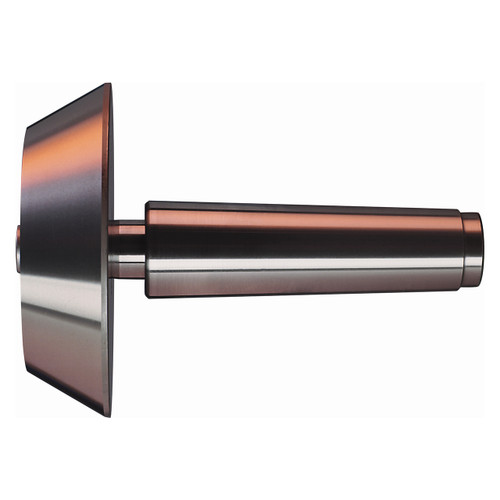

Riten 17123 | 3 Morse Taper 1.160" Length x 4.950" OAL Bell Head Live Center

$436.00
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
1.1600"
Length (mm):
29.46mm
Overall Length (Inch):
1"
Overall Length (Decimal Inch):
4.9500"
Overall Length (mm):
125.73mm
SKU:
55001336
UPC:
Weight:
1.23 LBS
Shipping:
Free Shipping

Features:

  • Accuracy to ± 0.0001
  • Compensates for thermal expansion
  • Low profile

Product Specifications
# MFG17123
TypeType III Bell Head Center
Taper3 Morse
Accuracy± 0.0001
Overall Length (Inch)4.950"
Point Length (Inch)1.160"
Gage Line to Point (Inch)1.690"
Max Thrust Load (lbs)235 lbs.
Max Spring Travel (Inch)0.125"
Max Workpiece Weight (lbs)400 lbs.
Max RPM3000
SeriesConcentric Spring Loaded Live Centers
