Features:
- Accuracy to ± 0.0001
- Compensates for thermal expansion
- Low profile
Product Specifications
| # MFG | 17210 |

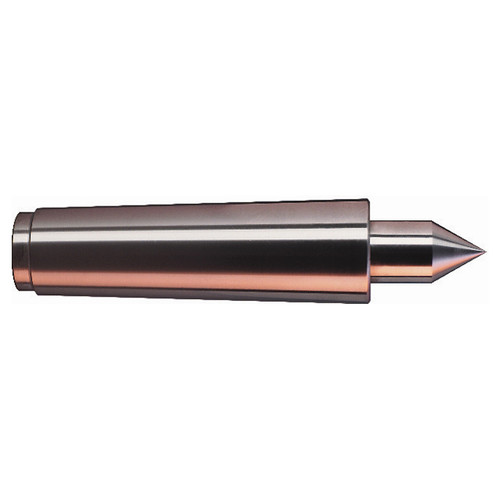

| Type | Type IV Standard Center |
| Taper | 10 Jarno |
| Accuracy | ± 0.0001 |
| Overall Length (Inch) | 6.290" |
| Point Length (Inch) | 1.380" |
| Gage Line to Point (Inch) | 2.380" |
| Max Thrust Load (lbs) | 780 lbs. |
| Max Spring Travel (Inch) | 0.156" |
| Max Workpiece Weight (lbs) | 960 lbs. |
| Max RPM | 2000 |
| Point Diameter (Inch) | 0.686" |
| Series | Concentric Spring Loaded Live Centers |
