Features:
- Accuracy to ± 0.0001
- Compensates for thermal expansion
- Low profile
Product Specifications
| # MFG | 17226 |

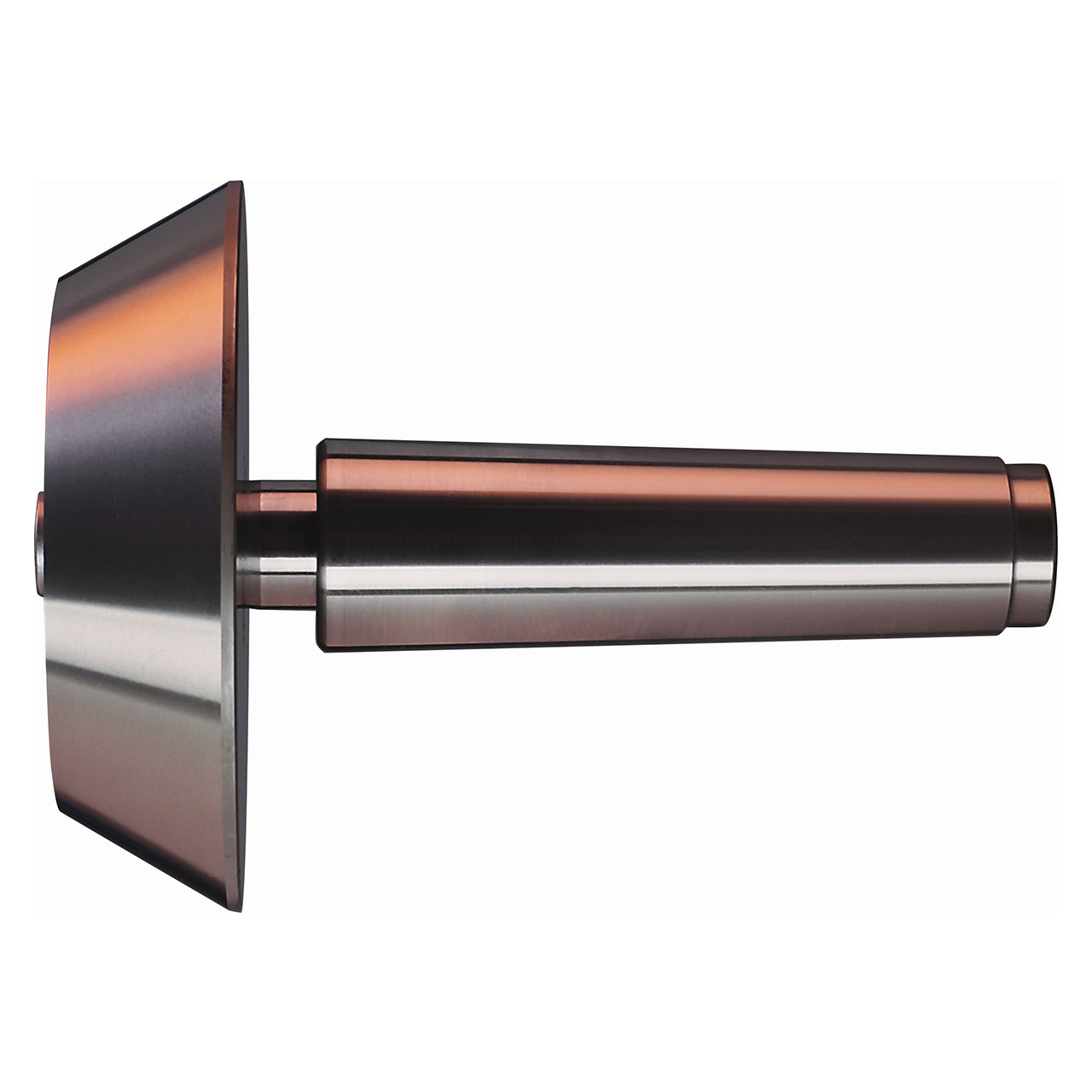

| Type | Type II Bell Head Center |
| Taper | 6 Jarno |
| Accuracy | ± 0.0001 |
| Overall Length (Inch) | 3.950" |
| Point Length (Inch) | 0.880" |
| Gage Line to Point (Inch) | 1.380" |
| Max Thrust Load (lbs) | 173 lbs. |
| Max Spring Travel (Inch) | 0.094" |
| Max Workpiece Weight (lbs) | 274 lbs. |
| Max RPM | 3000 |

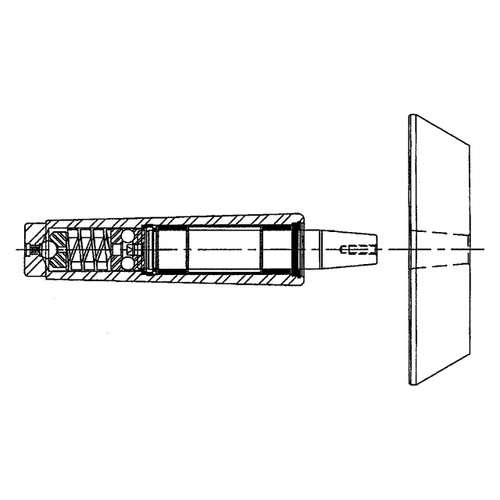

| Series | Concentric Spring Loaded Live Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
7/8"
Length (Decimal Inch):
0.8800"
Length (mm):
22.35mm
Overall Length (Inch):
1"
Overall Length (Decimal Inch):
3.9500"
Overall Length (mm):
100.33mm
