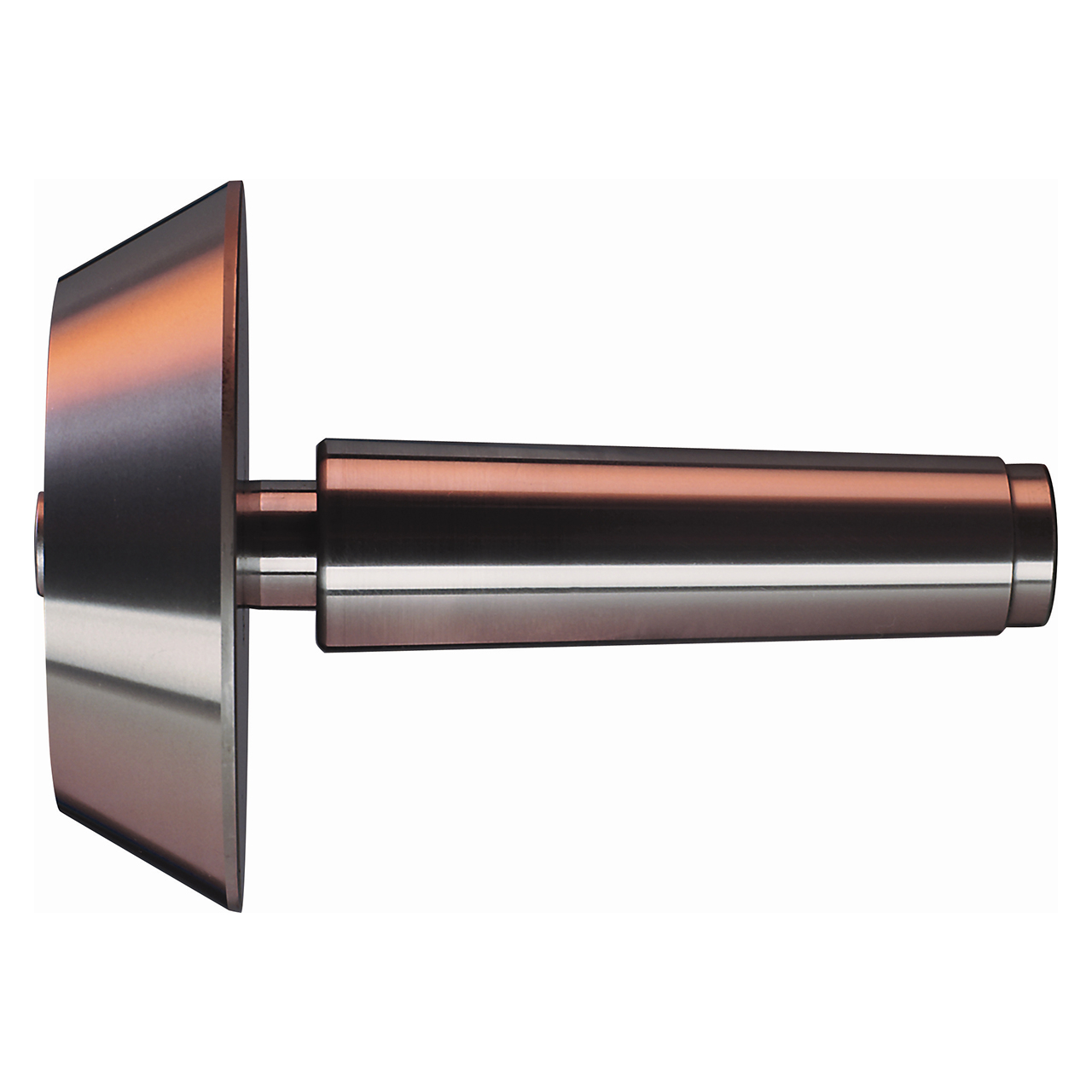

Riten 17230 | 10 Jarno Taper 1.380" Length x 6.290" OAL Bell Head Live Center

$620.00
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
1.3800"
Length (mm):
35.05mm
Overall Length (Inch):
1"
Overall Length (Decimal Inch):
6.2900"
Overall Length (mm):
159.77mm
SKU:
50028156
UPC:
Weight:
1.23 LBS
Shipping:
Free Shipping

Features:

  • Accuracy to ± 0.0001
  • Compensates for thermal expansion
  • Low profile

Product Specifications
# MFG17230
TypeType IV Bell Head Center
Taper10 Jarno
Accuracy± 0.0001
Overall Length (Inch)6.290"
Point Length (Inch)1.380"
Gage Line to Point (Inch)2.380"
Max Thrust Load (lbs)780 lbs.
Max Spring Travel (Inch)0.156"
Max Workpiece Weight (lbs)960 lbs.
Max RPM2000
SeriesConcentric Spring Loaded Live Centers
