Features:
- Accuracy to ± 0.0001
- Compensates for thermal expansion
- Low profile

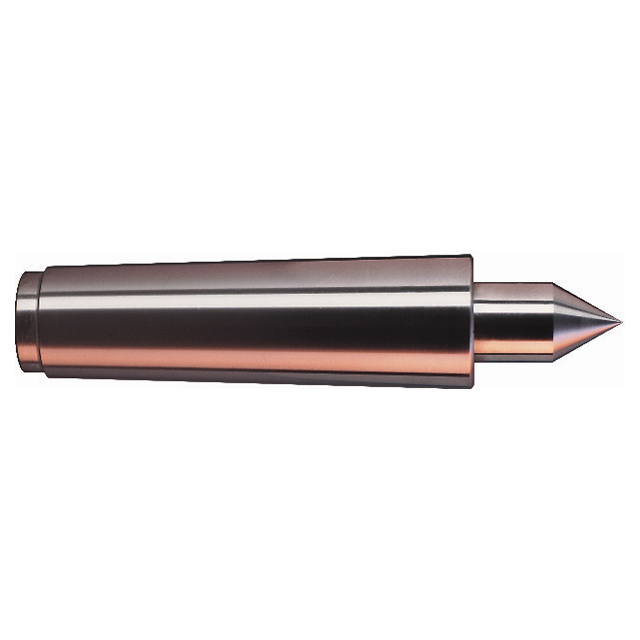

Product Specifications
| # MFG | 17411 |
| Type | Type IV Standard Center |
| Taper | 11 Brown & Sharpe |
| Accuracy | ± 0.0001 |
| Overall Length (Inch) | 6.290" |
| Point Length (Inch) | 1.380" |
| Gage Line to Point (Inch) | 2.380" |
| Max Thrust Load (lbs) | 780 lbs. |
| Max Spring Travel (Inch) | 0.156" |
| Max Workpiece Weight (lbs) | 960 lbs. |
| Max RPM | 2000 |
| Point Diameter (Inch) | 0.686" |
| Series | Concentric Spring Loaded Live Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
1.3800"
Length (mm):
35.05mm
Overall Length (Inch):
1"
Overall Length (Decimal Inch):
6.2900"
Overall Length (mm):
159.77mm
Diameter (Inch):
11/16"
Diameter (Decimal Inch):
0.6860"
Diameter (mm):
17.42mm
