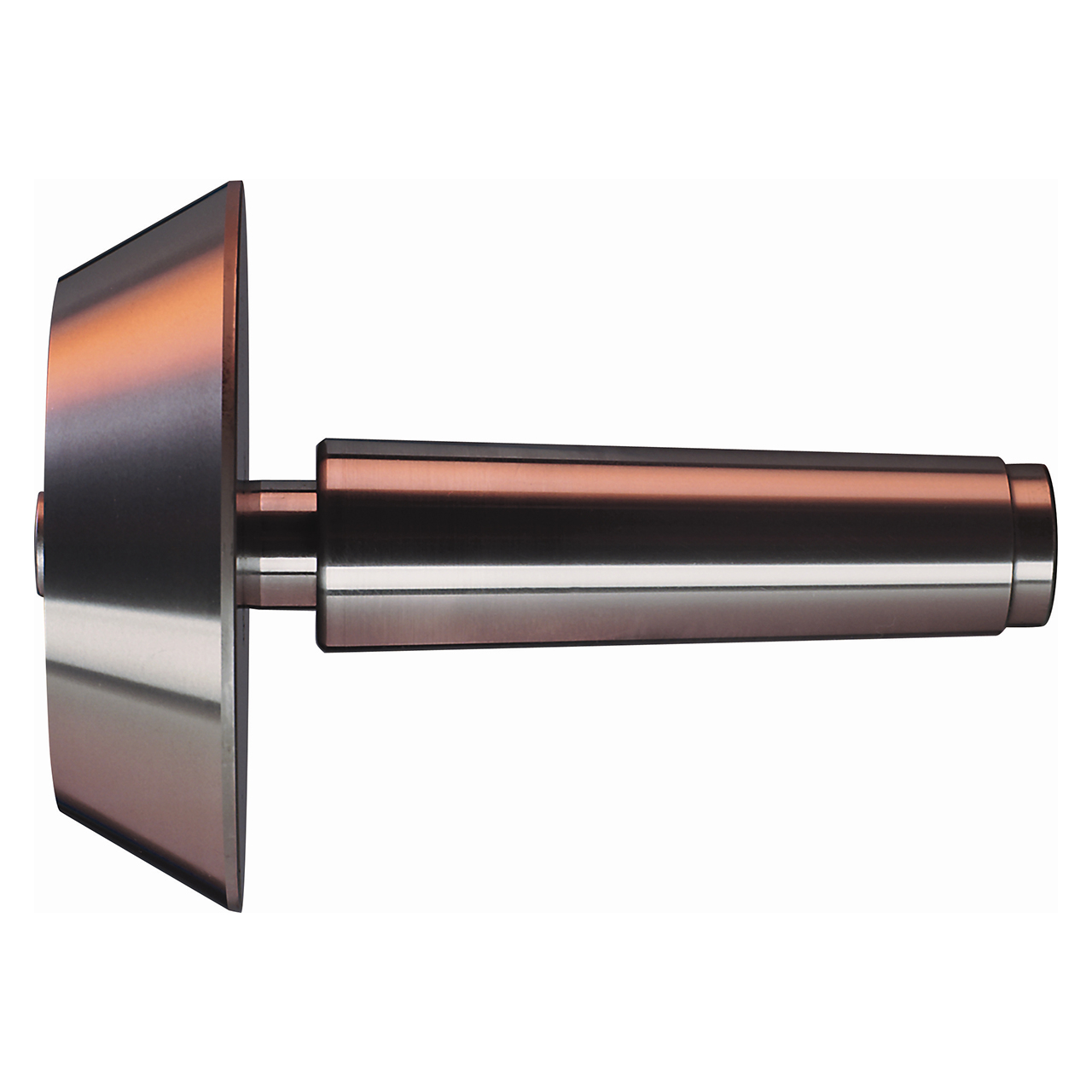

Riten 17435 | 15 Brown & Sharpe Taper 2.812" Length x 11.000" OAL Bell Head Live Center

$1,322.00
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
2.8120"
Length (mm):
71.42mm
Overall Length (Inch):
11"
Overall Length (Decimal Inch):
11.0000"
Overall Length (mm):
279.40mm
SKU:
50028202
UPC:
Weight:
1.23 LBS
Shipping:
Free Shipping

Features:

  • Accuracy to ± 0.0001
  • Compensates for thermal expansion
  • Low profile

Product Specifications
# MFG17435
TypeType VI Bell Head Center
Taper15 Brown & Sharpe
Accuracy± 0.0001
Overall Length (Inch)11.000"
Point Length (Inch)2.812"
Gage Line to Point (Inch)3.630"
Max Thrust Load (lbs)2183 lbs.
Max Spring Travel (Inch)0.188"
Max Workpiece Weight (lbs)2500 lbs.
Max RPM1500
SeriesConcentric Spring Loaded Live Centers
