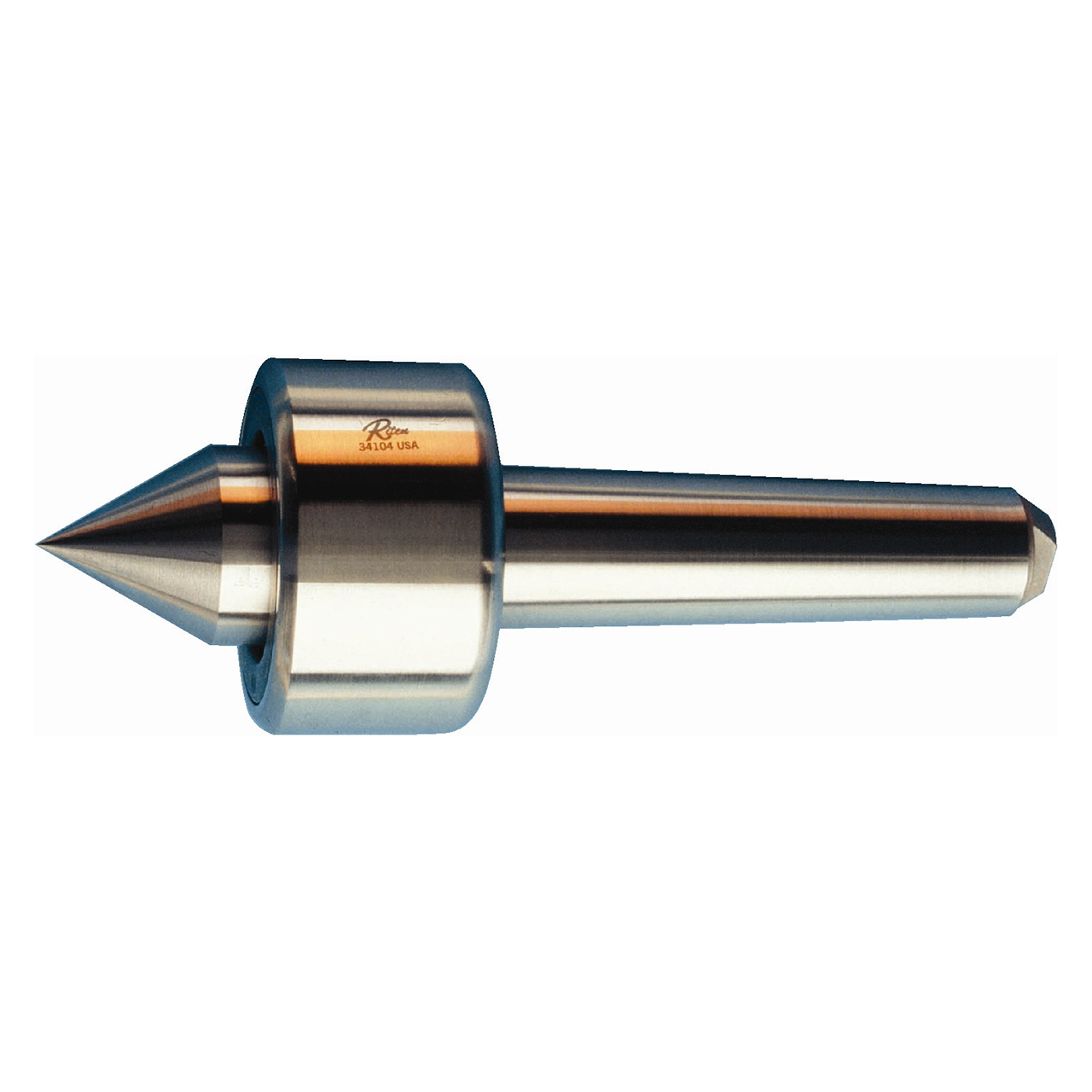

Medium-Duty live centers are required where the weight of the workpiece is several hundred pounds. These centers are built with larger bearings to provide the support and strength required to handle heavier workpieces.
<
Product Specifications
| # MFG | 34104 |
| Taper | 4 Morse |
| Accuracy | ± 0.00004 |
| Point Length (Inch) | 1.625" |
| Max Workpiece Weight (lbs) | 2200 lbs. |
| Head Length (Inch) | 1.656" |
| Head Diameter (Inch) | 2.813" |
| Max RPM | 1000 |
| Point Diameter (Inch) | 1.500" |
| Gage Line to Back of Head (Inch) | 0.188" |
| Point Style | Standard Point |
| Series | Super Accurate Live Centers |
