Features:
- Accuracy guaranteed to ± 0.00005
- Two angular contact bearings for superior performance in a compact design
- Points are through-hardened to 61-63 Rc
- Full-length spindle for extra rigidity
- Long point configuration allows for tool clearance
- Body heat-treated for additional strength
Product Specifications

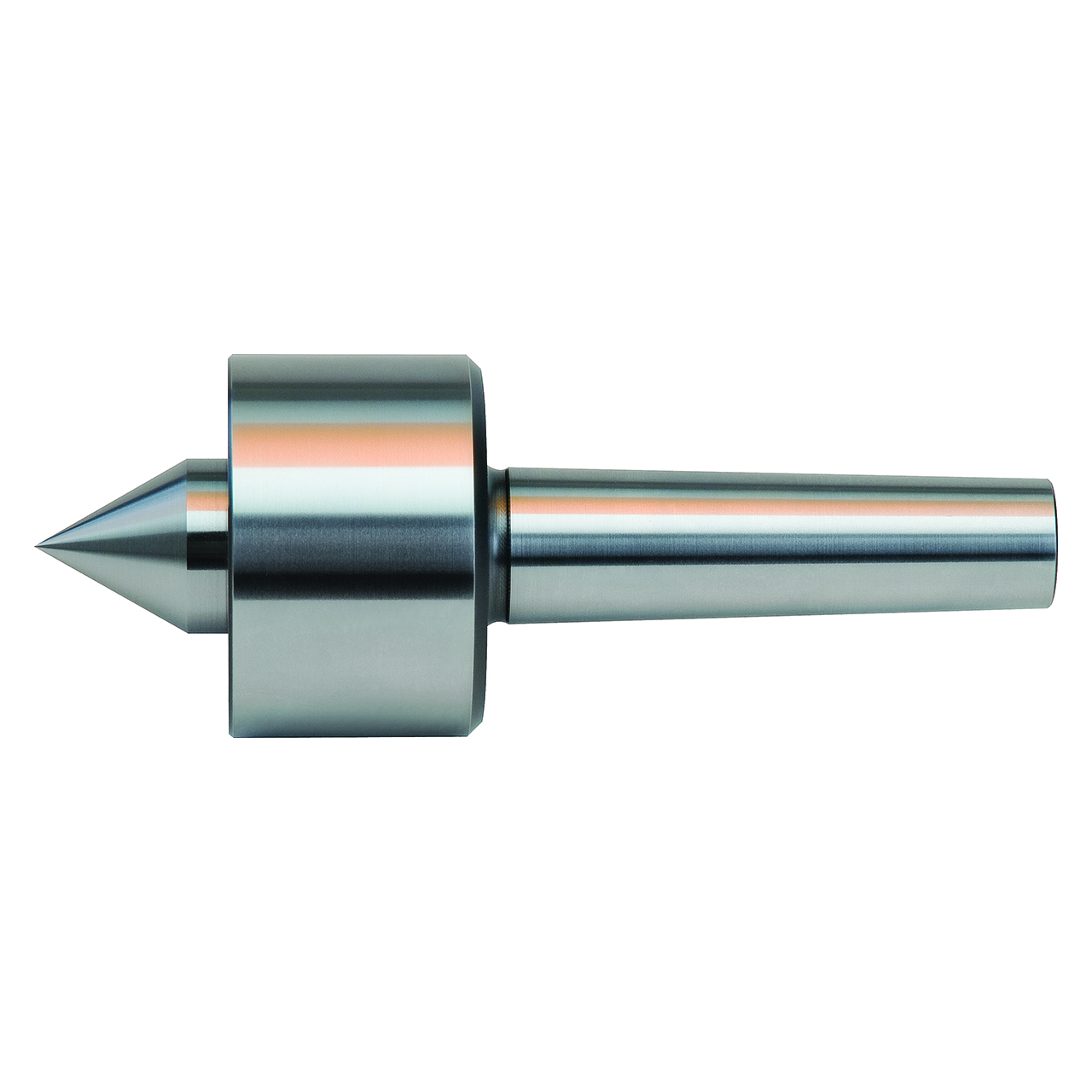

| # MFG | 48604 |
| Taper | 4 Morse |
| Accuracy | ± 0.00005 |
| Point Length (Inch) | 1.500" |
| Max Workpiece Weight (lbs) | 2100 lbs. |
| Head Length (Inch) | 1.969" |
| Head Diameter (Inch) | 3.000" |
| Max RPM | 4000 |
| Point Diameter (Inch) | 1.375" |
| Gage Line to Back of Head (Inch) | 0.375" |
| Point Style | Standard Point |
| Series | Regal Live Centers |
