Features:
- Accuracy guaranteed to ± 0.0001
- Designed for heavy steel rolls, paper rolls, printing rolls, castings, forgings and other large parts

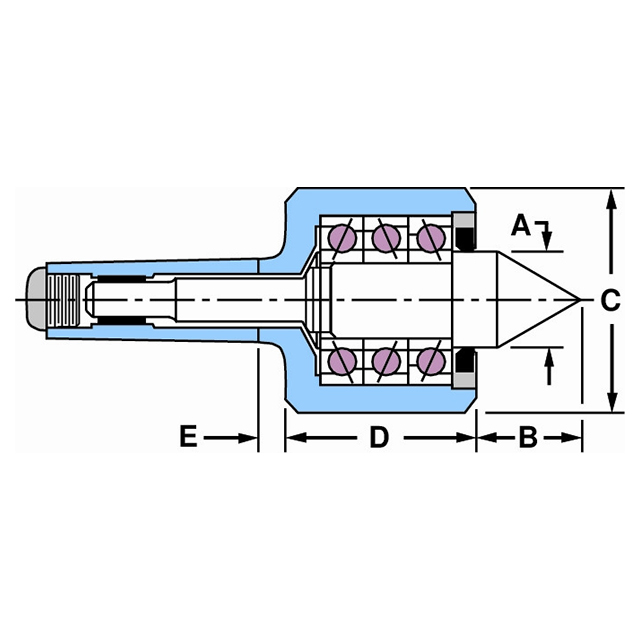

Product Specifications
| # MFG | 55106 |
| Taper | 6 Morse |
| Accuracy | ± 0.0001 |
| Point Length (Inch) | 2.500" |
| Max Workpiece Weight (lbs) | 22500 lbs. |
| Head Length (Inch) | 5.094" |
| Head Diameter (Inch) | 6.5625" |
| Max RPM | 3000 |
| Point Diameter (Inch) | 2.625" |
| Gage Line to Back of Head (Inch) | 0.594" |
| Point Style | Standard Point |
| Series | Extra Heavy Duty Live Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
2.5000"
Length (mm):
63.50mm
Diameter (Inch):
2-5/8"
Diameter (Decimal Inch):
2.6250"
Diameter (mm):
66.68mm
