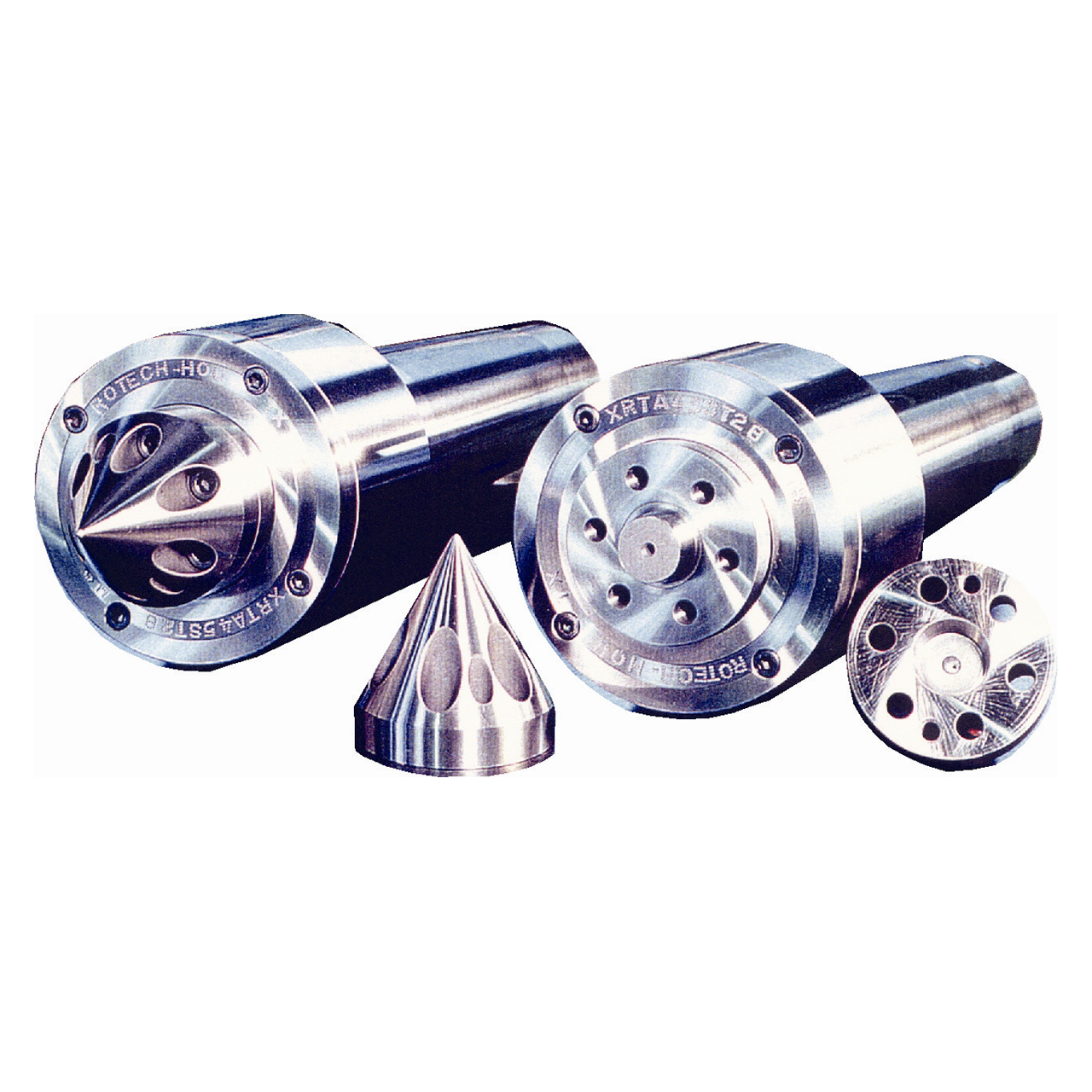

High capacity, three-bearing live centers designed especially for the high loads, high removal rates, and close tolerance requirements of mill roll manufacturing and rebuilding. Handle loads of 62,000 lbs. and larger.

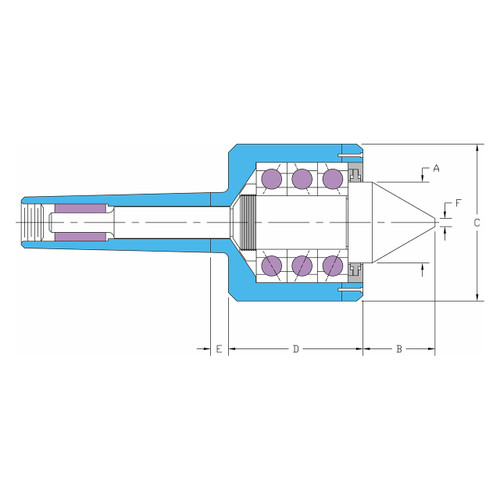

<Product Specifications
| # MFG | 55945 |
| Accuracy | ± 0.0002 |
| Point Length (Inch) | 4.750" |
| Head Length (Inch) | 7.250" |
| Head Diameter (Inch) | 9.750" |
| Max RPM | 900 |
| Point Diameter (Inch) | 4.250" |
| Minimum Diameter (Inch) | 0.375" |
| Gage Line to Back of Head (Inch) | 0.625" |
| Series | Super Duty Live Centers |
| Gage Line (Inch) | 4.500" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
4.7500"
Length (mm):
120.65mm
Diameter (Inch):
3/8"
Diameter (Decimal Inch):
0.3750"
Diameter (mm):
9.53mm
interval quantity:
1
