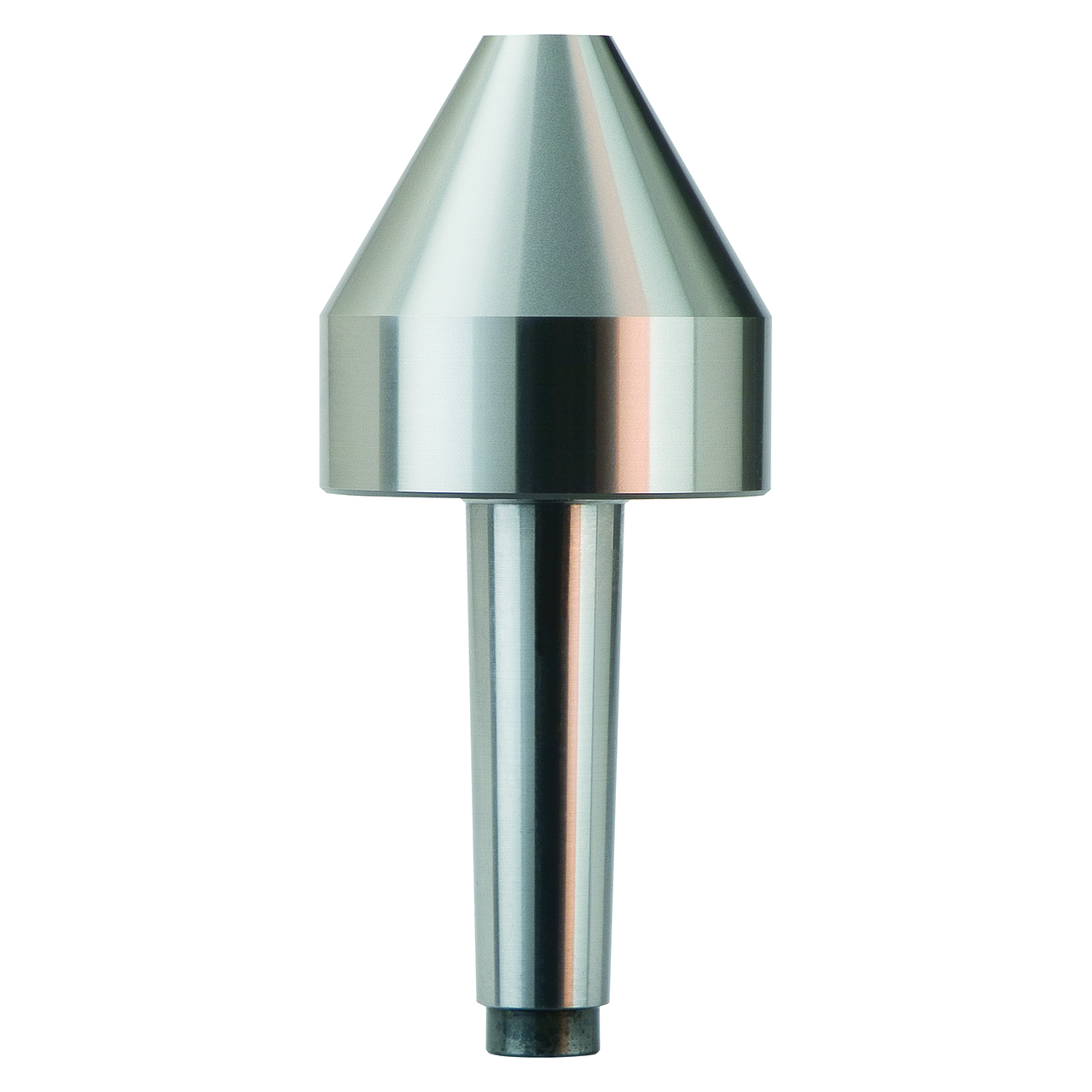

Features:
- Accuracy guaranteed to ± 0.0001.
- For heavy, large center hole workpieces
- Interchangeable pipe point for greater precision in difficult configurations, applications, and tool clearances
- High RPM capacity
Product Specifications
| # MFG | 56303 |
| Taper | 3 Morse |
| Accuracy | ± 0.0001 |
| Gage Line to Point (Inch) | 3.750" |
| Max Workpiece Weight (lbs) | 2700 lbs. |
| Max RPM | 7000 |
| Point Diameter (Inch) | 3.500" |
| Minimum Diameter (Inch) | 1.000" |
| Gage Line to Back of Head (Inch) | 0.250" |
| Nose Style | Bull Nose |
| Series | Precision Bull Nose Live Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Diameter (Inch):
3-1/2"
Diameter (Decimal Inch):
3.5000"
Diameter (mm):
88.90mm
