Features:
- Accuracy guaranteed to ± 0.0001
- For heavy, large center hole workpieces
- Interchangeable pipe point for greater precision in difficult configurations, applications, and tool clearances
- High RPM capacity

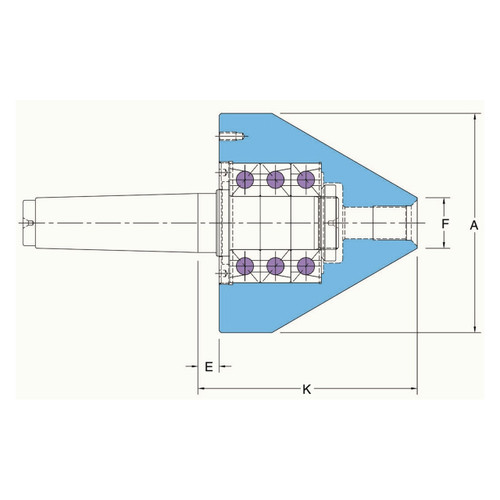

Product Specifications
| # MFG | 56506 |
| Taper | 6 Morse |
| Accuracy | ± 0.0001 |
| Gage Line to Point (Inch) | 5.563" |
| Max Workpiece Weight (lbs) | 7000 lbs. |
| Max RPM | 4500 |
| Point Diameter (Inch) | 5.500" |
| Minimum Diameter (Inch) | 1.500" |
| Gage Line to Back of Head (Inch) | 0.625" |
| Nose Style | Bull Nose |
| Series | Precision Bull Nose Live Centers |
