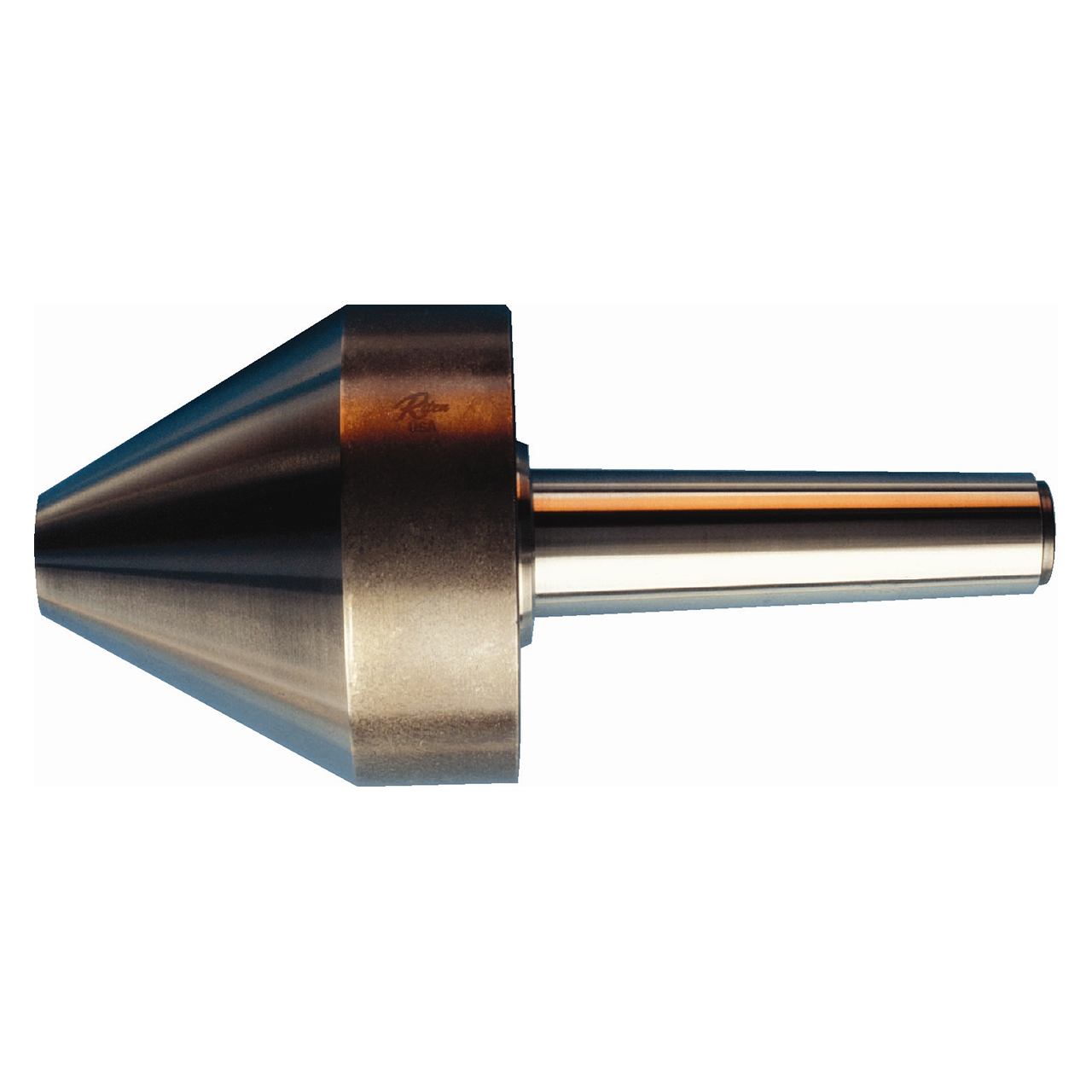

Riten Bull Nose Centers are constructed with larger bearings to carry heavier loads. The strength and alignment of the fully supported bull nose gives longer center life when machining larger workpieces. The rigidity of the center prevents vibration and chatter.
<| # MFG | 56525 |
| Taper | 5 Morse |
| Accuracy | ± 0.00015 |

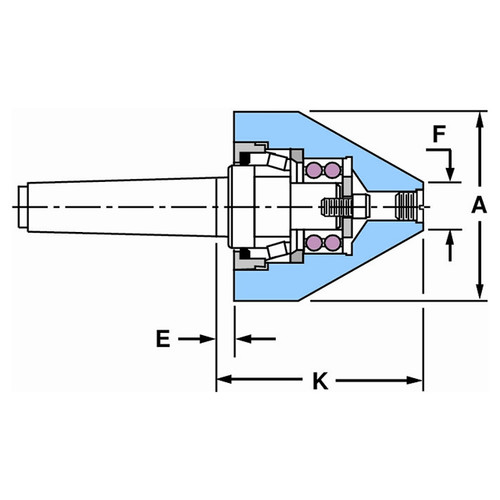

| Gage Line to Point (Inch) | 3.813" |
| Max Workpiece Weight (lbs) | 4800 lbs. |
| Point Diameter (Inch) | 5.000" |
| Minimum Diameter (Inch) | 2.000" |
| Gage Line to Back of Head (Inch) | 0.375" |
| Nose Style | Bull Nose |
| Series | Bull Nose Live Centers |
