Imperial Carbide Centers cover the requirements for a wide range of workpiece center holes. They reduce costs by eliminating the need for special dead centers. Knockout ends are hardened on carbide tipped dead centers.

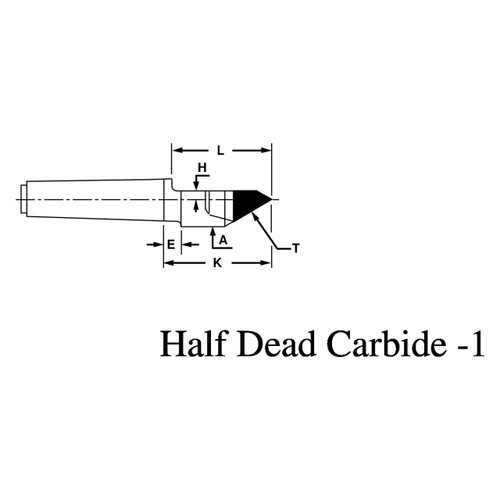

<Product Specifications
| # MFG | 69606 |
| Taper | 6 Jarno |
| Accuracy | ± 0.00005 |
| Gage Line to Point (Inch) | 2.375" |
| Point Diameter (Inch) | 1.250" |
| Gage Line to Back of Head (Inch) | 0.375" |
| Center Style | Half Carbide Center |
| Carbide Tip Diameter (Inch) | 1.000" |
| Height Above Center Line (Inch) | 0.125" |
| Point Style | Large Carbide Point |
| Series | Imperial Dead Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Diameter (Inch):
1-1/4"
Diameter (Decimal Inch):
1.2500"
Diameter (mm):
31.75mm
