Features:
- Steel Half Center

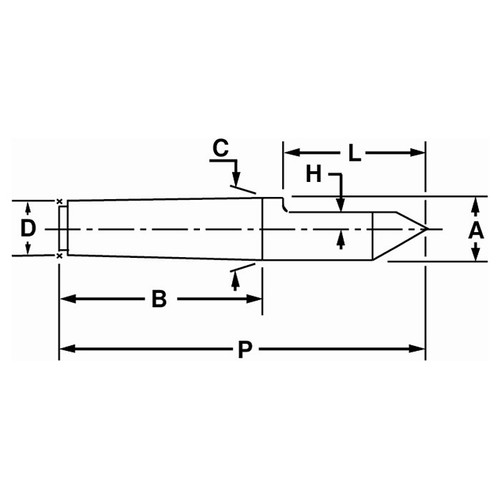

Product Specifications
| # MFG | 71042 |
| Taper | 4 Morse |
| Accuracy | ± 0.00005 |
| Overall Length (Inch) | 6.750" |
| Point Length (Inch) | 1.231" |
| Center Style | Half Steel Center |
| Taper Length (Inch) | 4.063" |
| D (Inch) | 1.020" |
| Height Above Center Line (Inch) | 0.250" |
| Length of Cut Out (Inch) | 2.250" |
| Series | Standard Length Dead Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Overall Length (Inch):
1"
Overall Length (Decimal Inch):
6.7500"
Overall Length (mm):
171.45mm
Diameter (Inch):
1-15/64"
Diameter (Decimal Inch):
1.2310"
Diameter (mm):
31.27mm
